Cement Clinker Grinding Plant







Technical Data

Capacity: 50 t/d - 3000 t/d



Main Materials: Limestone, Clay, Gypsum, Fly Ash, Slag



Main Equipment: Cement Ball Mill / Cement Vertical Mill, Bag Filter



Application: Cement Clinker Grinding Station

ADVANTAGE

1. The batching system have been adopt automatic quantitative feeding and measuring device, which have increase the material batching accuracy and also stablilizing the production’s quality.

2. Adopting tube mill or vertical roller mill to producing qualify cement according to the raw material’s condition of clients.

3. Producing system have adopt closed circuit to reduce the energy consumption of cement grinding. The single line scale can be from 15tpd to 1500tpd, which have been covered the cement factory’s different manufacture demand.

4. Adoption of High efficiency air classifier and pulse type bag filter have created the circumstance for energy saving and energy consumption reduction.

5. The mill and air classifier have adopt 3D computer design, which have reasonable structure and reliable operation.

6. The grinding system have adopt best ventilation air volume design, which will reduce the installed capacity.

7. Plant have high automation level, the operating process will adopt DCS central control system for adjustment, control and alarm in master control room, then the whole plant have less operator and also increase the working efficiency.



INTRODUCTION

We provide the full range service including design, manufacturing, installation and training for complete cement clinker grinding plant with capacity from 50t/d to 1500t/d.

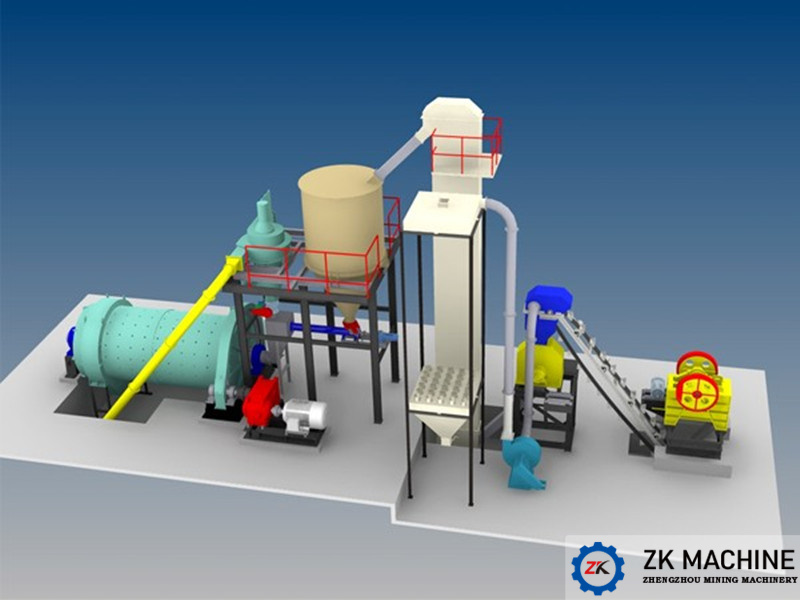

The cement clinker grinding plant acts as an individual production line in the last period of the cement production process. In the finished product period, the cement clinker is ground by adding moderate mixing materials and then forms the finished cement. Main Equipments: Cement Ball Mill or Vertical Mill, Dust Collector, Powder Separator, Bucket Elevator, etc.

SPECIFICATIONS

No.

Item

Unit

Closed circuit production

1

Factory capacity

×10³t/a

100

160

250

350

500

2

Main material usage













Clinker

t/a

80000

128000

200000

280000

400000

Gypsum

t/a

5000

8000

12500

17500

25000

Pozzolana

t/a

15000

24000

37500

52500

75000

3

Energy consumption













Fresh water

t/a

4000

7000

9000

12000

17000

Electrical

kWh/a

3600000

5700000

8500000

1200000

17000000

4

Layout transportation













Land area

15000

18000

20000

22000

24000

5

Project invest













Production line total invest

Ten

600

1000

1500

2000

2850





thousand











6

Workers



30

35

35

35

35

7

Main equipment













Ball mill



Φ2.2×6.5m

Φ2.4×11m

Φ3×11m

Φ3.2×13m

Φ3.5×13m







14t/h

24t/h

35t/h

50t/h

70t/h







380kW

630kW

1250kW

1600kW

2000kW

Belt conveyor



B500

B650

B650

B800

B1000

Mill outlet bucket elevator



TH315

TH400

NE100

NE150

NE200

Air classifier



NHX400

NHX600

NHX700

NHX800

NHX1000







Osepa   N250

Osepa   N500

Osepa   N750

Osepa   N1000

Osepa   N1500

Bag filter



PPC32-4

PPC32-6

PPC64-5

PPC64-6

PPC64-7







PPC64-6

PPC96-7

(PPC96-2×5

(PPC96-2×6

(PPC96-2×10

Finished production bucket elevator



TH250

TH315

NE50

NE100

NE100

Screw conveyor



LS400

LS400

LS500

-

-

Packer



Three   nozzle

Four   nozzle

Six   nozzle

Eight       nozzle

Eight   nozzle

Belt weigher



B500×2000

B650×2500

B800×2500

B800×2500

B1000×3500





PROCESS

The cement grinding technology is adopted by investors as circuit cement grinding processing, which have various advantages like high manufacture ability, high automation level, good production quality, less energy consumption, more industry waste using quantity, so have been as the main technology of world-wide cement manufacture.

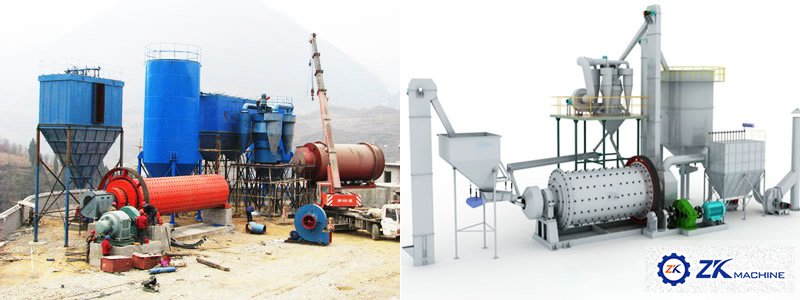

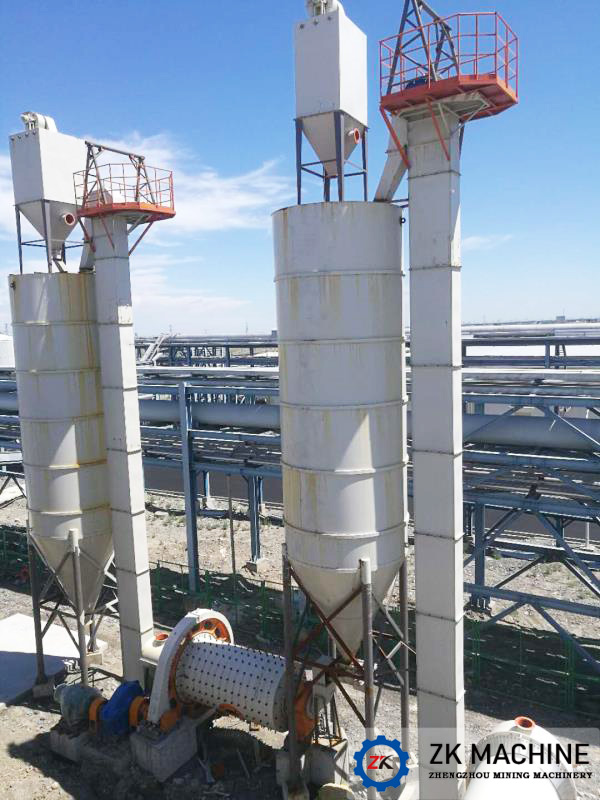

The cement manufacture process of grinding station, have be adopt open circuit manufacture process, and mostly application is closed circuit manufacture process which meaning ball mill grinding system match with air classifier.

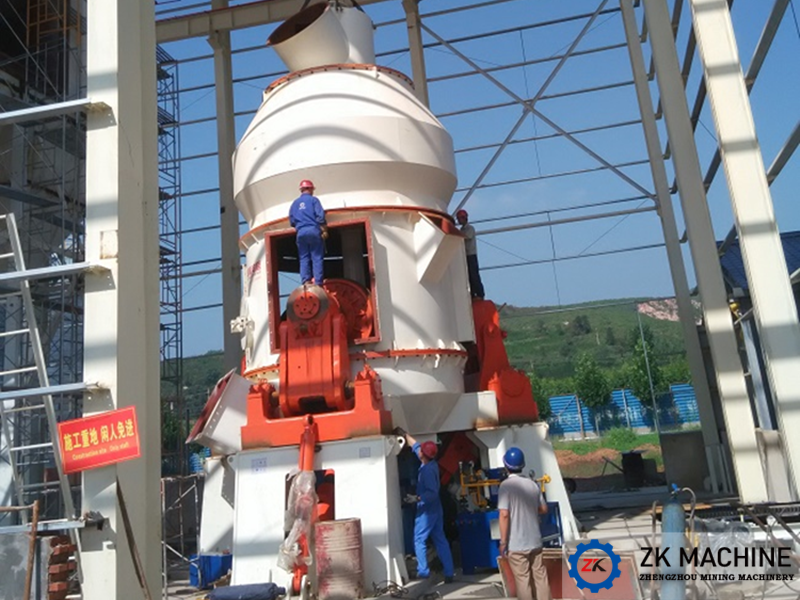

As for the cement producing scale is bigger and bigger, the roller mill is widely used in the grinding system, which will reduce the feeding size of ball mill, greatly increase the producing capacity and decrease grinding energy consumption.



Active Lime Production Line 6.jpg
