Powder Grinding Plant







Technical Data

Capacity: 0.5-2.5T/H



Applied material: Dolomite, Limestone, Bauxite, Slag etc



Application: Construction materials, chemical, ceramic, mining, slag etc



ADVANTAGE

1. Ultra-fine powder processing,the smallest size can reach 2500 mesh;

2. Safe and reliable operation in grinding cavity;

3. Environmental protecting,less pollution;

4. Electrical system adopts centralized control, milling workshop basic enable unmanned operation. Compared with other milling equipment, through screening rate is 99%.

INTRODUCTION

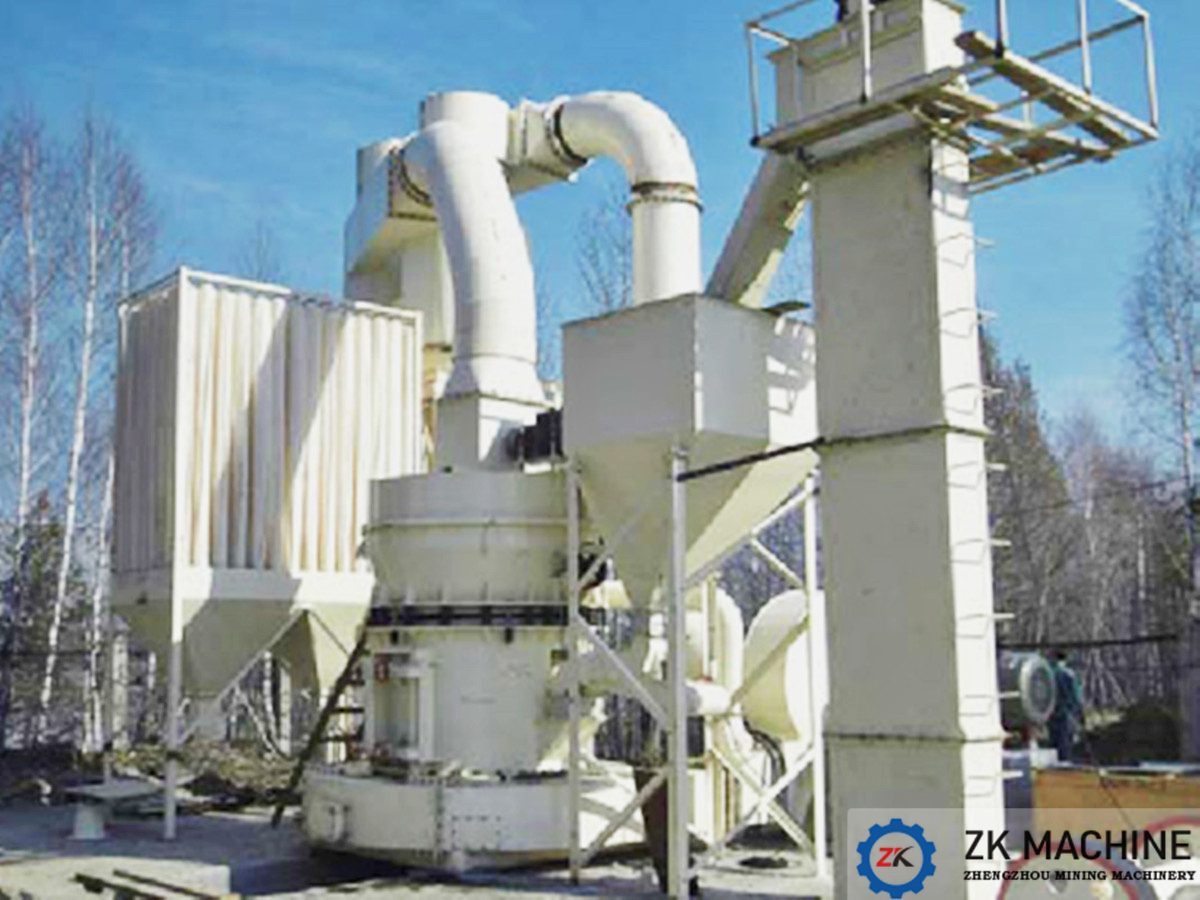

Powder Grinding Plant is the grinding process of dolomite, limestone, bauxite etc. The whole grinding system is composed with jaw crusher, bucket elevator, electromagnetic feeder, grinding unit, blower, analyzer, cyclone powder collectors, bag filters, pipes and electrical cabinet parts. According to customer demand can adopt Raymond mill, high pressure grinding mill, micro powder grinding mill etc.


SPECIFICATIONS

Grinding mill

YGM75

YGM95

YGM130

YGM160

YGM190



Main Equipment

Capacity

0.8-1.5t/h

2.5-4t/h

4.5-7t/h

7-11t/h

11-15t/h



Grinding mill Power

Main Grinder

18.5

45

90

132

185



Blower

15

37

90

132

185



Classifier

2.2

5.5

7.5

15

22



Jaw Crusher

Model

PE150X250

PE200X350

PE250X400

PE250X750

PE250X750



Power(Kw)

5.5

7.5

15

22

22



Input size (mm)

≤130

≤150

≤210

≤210

≤210



Output size (mm)

15-45

15-55

25-60

25-60

25-60



Elevator

Model

T210

T210

T250

T315

T400



Power(Kw)

3

3

3

4

4



Feeder

Model

GZ-2

GZ-4

GZ-4

GZ-5

GZ-5



Power(Kw)

0.15

0.45

0.45

0.65

0.65



Silo

According to the actual situation,we choose the suitable size for you.





PROCESS

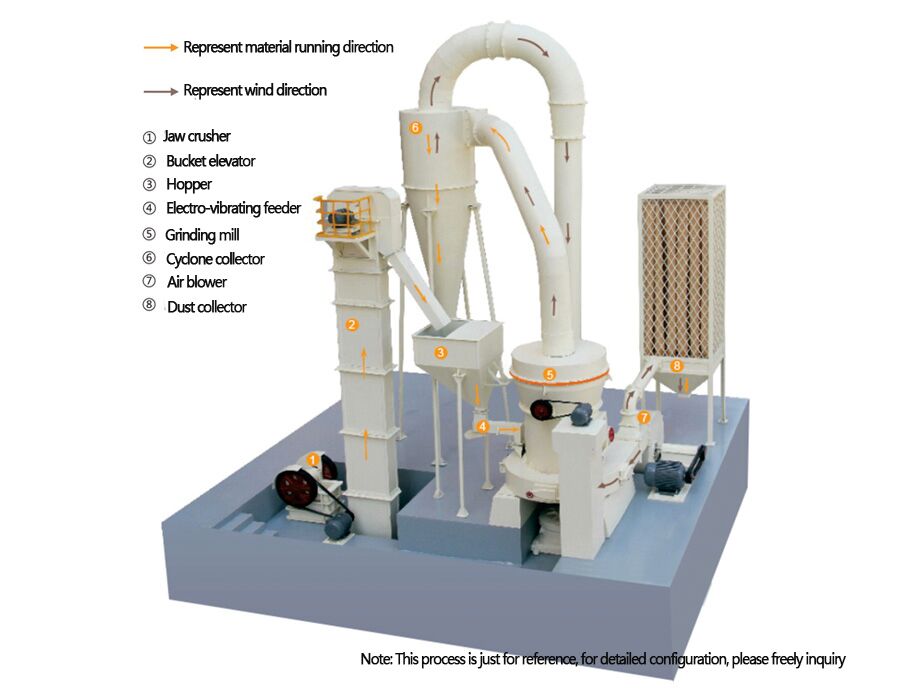

Raw material is crushed by jaw crusher then elevated into a hopper by bucket elevator, through the electromagnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. Finally powder enter into analyzer for separating under the function of blower, qualified fine powder go to cyclone collector and discharged from pipes into storage silo, unqualified powder drop back into grinding chamber for re-grind.



Whole process is under negative pressure formed closed airflow loop. Cyclone collector bottom equip air-valves, isolated outside air from inner air, increase grinding efficiency heavily. Besides, few dust and air going up to dust collector for pure, filter, more friendly for environment.

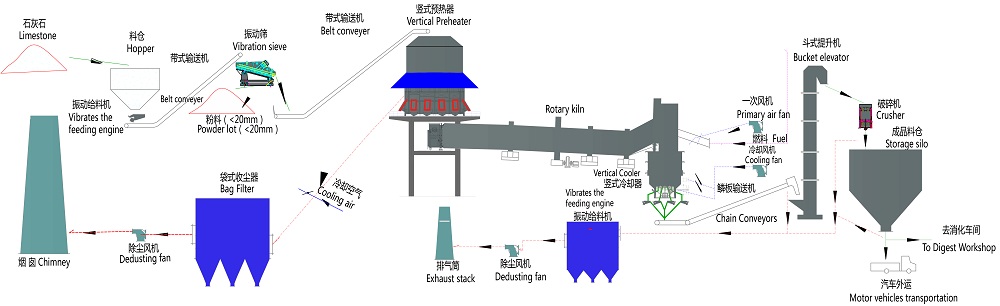

Active Lime Production Line 6.jpg
