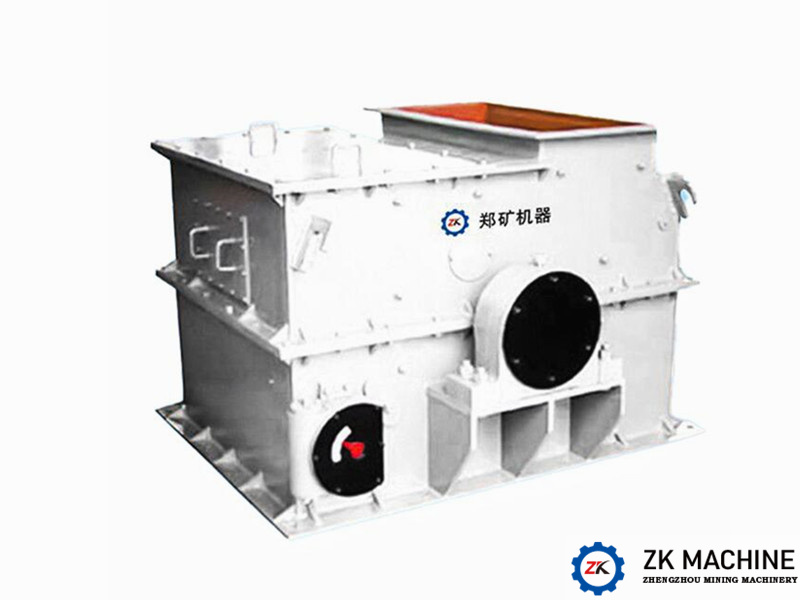

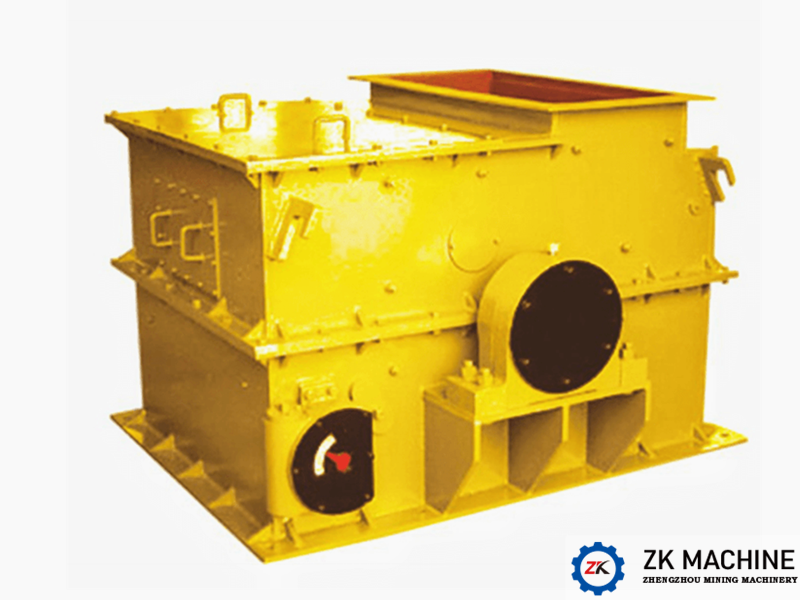

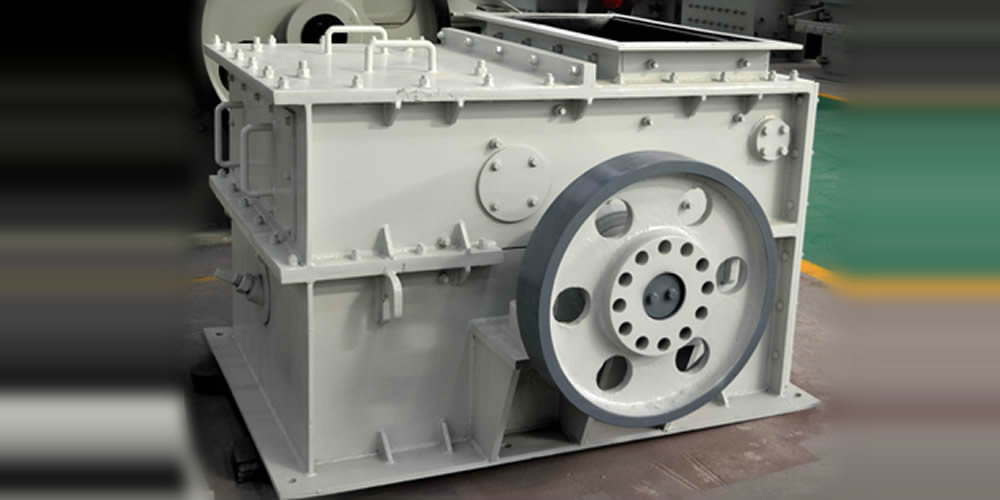

RING HAMMER CRUSHER







Technical Data

Model and spec: PCH0402 -- PCH1221



Max Feed Size: 200 - 400 (mm)



Discharge Size: ≤ 30 (mm)



Application: Limestone, Granite, Quartz, Dolomite, etc.

ADVANTAGE

1. It has large crushing ratio (normally is 10-25, or up to 50), high production capacity, even particles size, less over crushing phenomenon, simple structure, high weight and easy operation.

2. It can break material with size of 600-1800mm directly into size of 25mm or below.



INTRODUCTION

Ring Hammer Crusher is a kind of impact and rotor crusher with ring hammers. When the material enters into the crusher, it will be crushed by the high speed ring hammer fistly. Crushed materials obtain kinetic energy from ring hammer at the same time,rush to the breaking plate with high speed,by the second break,then fell on the screen plate,materials is crushed further by cutting,pressure,grinding from ring hammer and interaction each other, discharged from screen.The sundries can not be crushed come into the metal collector,cleaning regularly.

Ring Hammer Crusher is used to crush brittle materials, like gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 100Mpa; the surface water no more than 15%.

SPECIFICATIONS

Model

Rotor model (mm)

Max feed  size(mm)

Discharge  size (mm)

Motor model

Power
      (kW)

Capacity (t/h)

PCH-0402

400x200

200

≤30

Y132M2-6

5.5

8-12

PCH-0404

400x400

200

≤30

Y160L-6

11

16-25

PCH-0604

600x400

200

≤30

Y180L-6

15

22-33

PCH-0606

600x600

200

≤30

Y225M-6

30

30-60

PCH-0808

800x800

200

≤30

Y280M-8

45

75-105

PCH-1010

1000x1000

300

≤30

Y315M2-8

90 110

160-200

Y315M3-8

200-245

PCH-1016

1000x1600

300

≤30

Y312-8

155 220

300-350

Y400-8

400-500

PCH-1216

1200x1600

400

≤30

Y400-8

280 355

500-620

Y450-8

620-800

PCH-1221

1200x2100

400

≤30

Y450-8

450

800-1000





PROCESS

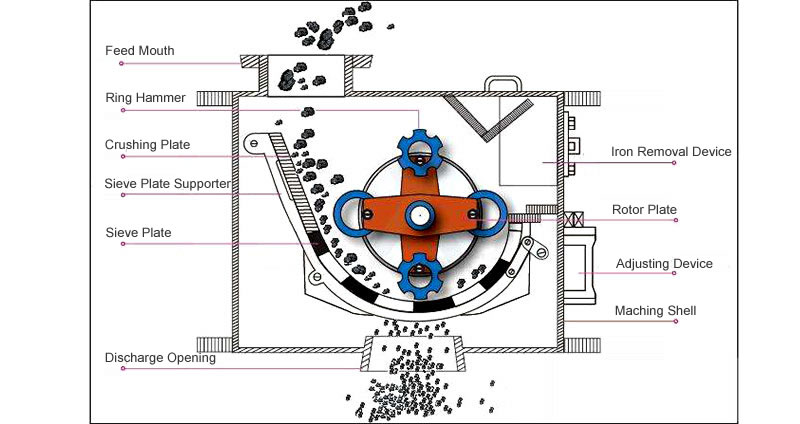

When material enters into the crusher, it can be crushed by the ring hammer which is revolved by the high-speed motor, at the same time material obtained the kinetic energy and rushed at the impact plate receiving the second crushing process, then falls on the screen sieve and be cut, extruded, and grinded by the ring hammer. At last the materials that come up to the standard can be discharged by the machine. Material can’t be crushed enters into the metal collector and should be eliminated regularly. Through replacement of sieve plate, discharge size of materials can be adjusted. Gap between rotor and sieve plate can be adjusted by the mechanism.
