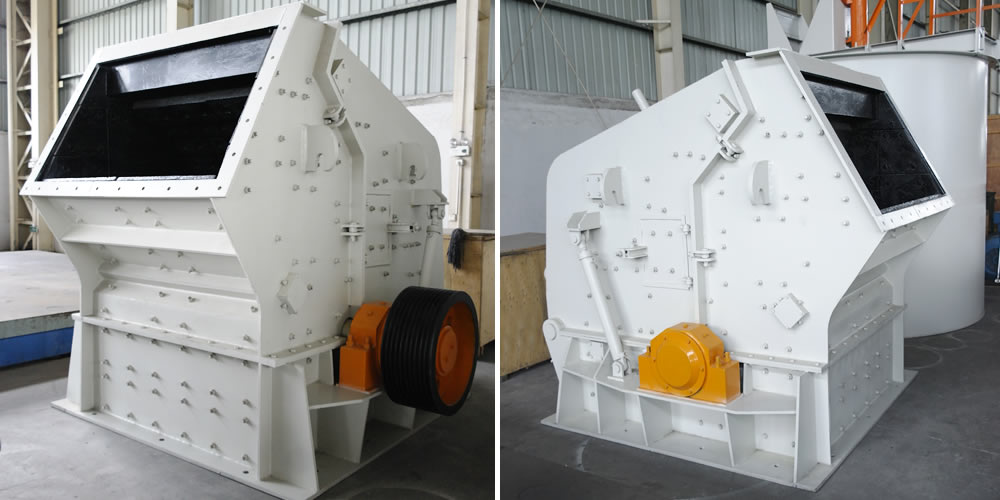

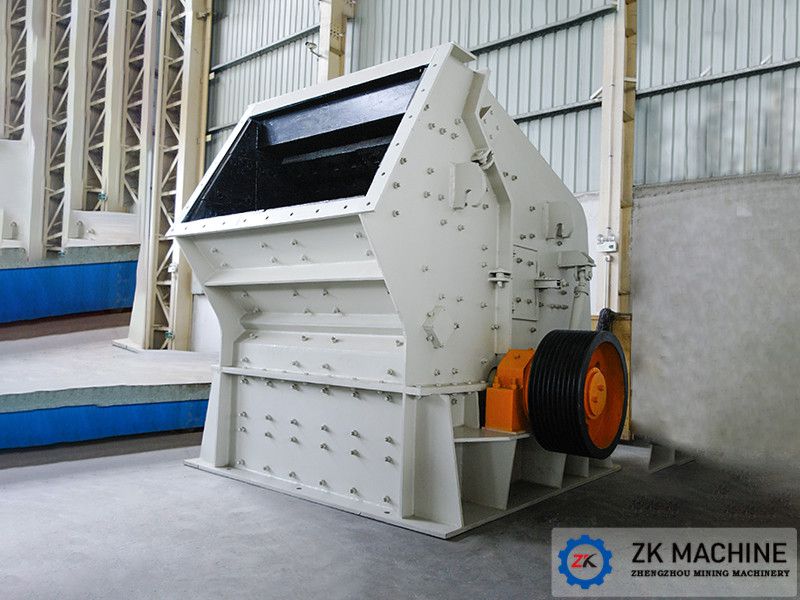

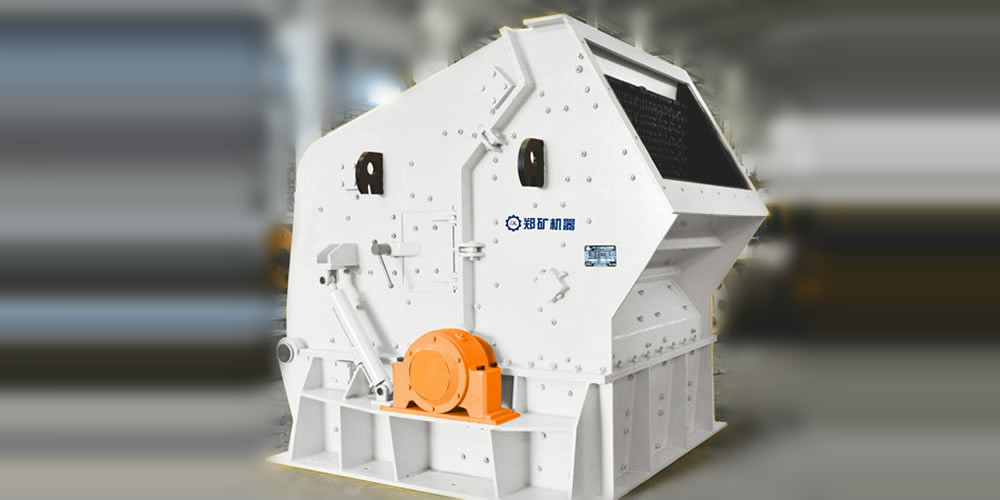

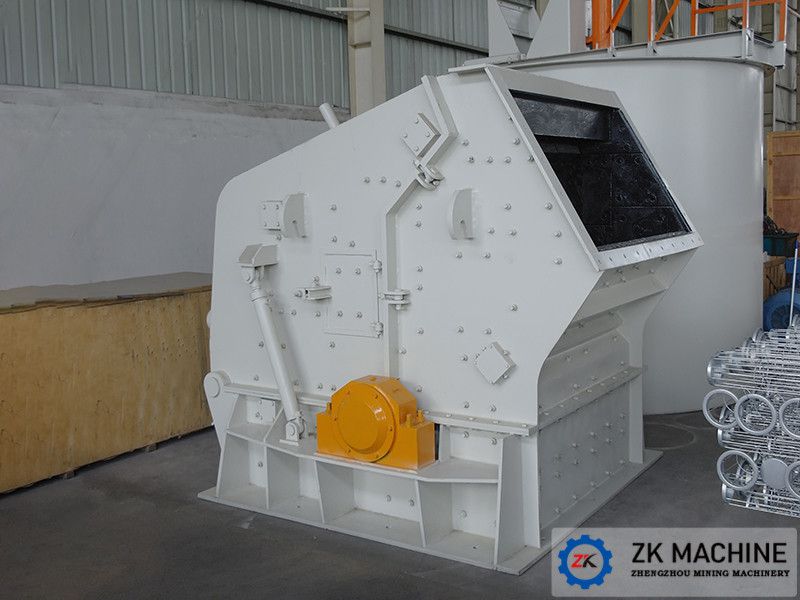

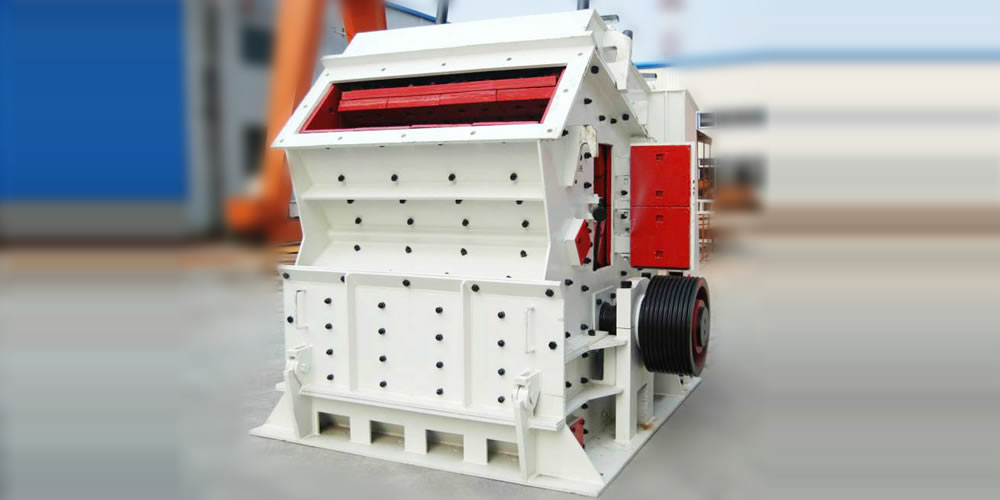

IMPACT CRUSHER







Technical Data

Capacity: 15-550 (t/h)



Inlet size: 400x730 - 830x2050 (mm)



Max feed size: 300-950 (mm)

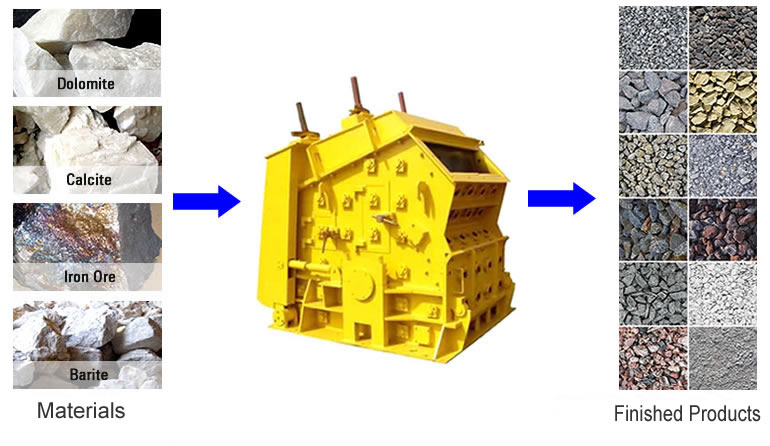

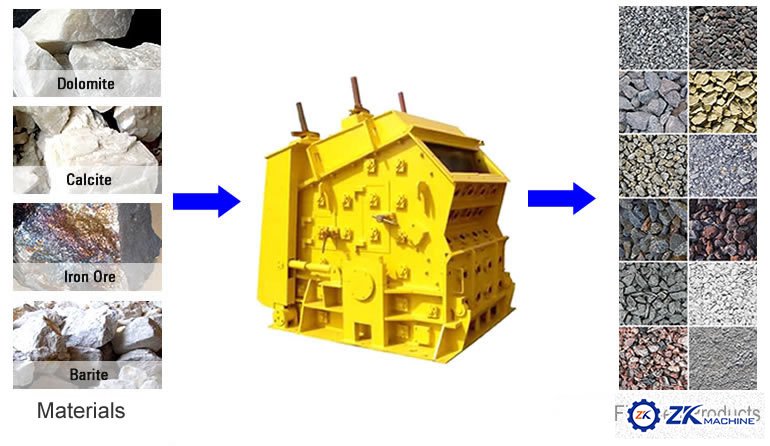

Application: Stone, Gravel, Aggregate, Mineral, etc.

ADVANTAGE

1. Multiple chamber can make it evenly and suitable for crushing hard rock.;

2. Large low feed port makes it easy to layout production line and increase the feed size;

3. New wear-resistant material of the plate hammer, impact plate and liner can last longer life;

4. High chrome hammer and unique counterattack lining board are particularly suitable for crushing hard rock and energy efficient;

5. The entire plate hammer structure makes the materials particle size more smaller and cube-shaped;

6. It uses fully hydraulic system, so it is easy and more convenient for maintenance and replacement of worn parts.



INTRODUCTION

PF Series Impact Crusher is one kind of equipment to crushing the brittle material which compression strength no more than 350 Map, the advantage including high crushing ratio, uniform product grain and low over crushing, low energy consumption, high adjustment range of product grain size and optional crushing etc, which is mainly used in mine, metallurgy, cement, construction material, coal etc for secondary crushing and fine crushing the medium hardness material.

SPECIFICATIONS

Model

Specification

Inlet size

(mm)

Max feeding size

(mm)

Capacity

(t/h)

Power

(kW)

Boundary size

(mm)

Weight

(t)





PF-0807

φ850×700

400×730

300

15~30

30~45

2210×1490×2670

8.1



PF-1007

φ1000×700

400×730

300

30~50

37~55

2400×1558×2670

9.5



PF-1010

φ1000×1050

400×1080

350

50~80

55~75

2400×2250×2820

12.2



PF-1210

φ1250×1050

400×1080

350

70~120

110~132

2690×2338×2890

14.9



PF-1214

φ1250×1400

400×1430

350

130~180

132~160

2690×2688×2890

18.6



PF-1310

φ1300×1050

490×1170

400

80~140

110~160

2780×2478×2855

16.2



PF-1315

φ1320×1500

860×1520

500

160~250

180~260

3096×3273×3067

19.3



PF-1415

φ1450×1500

1145×1520

950

220~450

220~315

3745×3022×3519

27.0



PF-1520

φ1520×2000

830×2050

700

300~550

315~440

3581×3560×3865

36.5







PROCESS

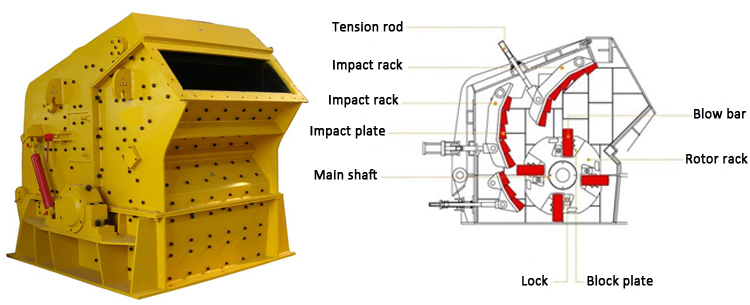

PF series impact crusher is mainly compose of the rack, driving system, rotor, hammer and impact plate etc. The main feature including:

1. Rack:

It composed by two parts of upper and lower with connection by bolt. All the parts contact the crushed material in the rack have set replaceable lining plate.

2. Driving System:

The main shaft and rotor are driving by motor through belt then doing the high speed rotary motion.

3. Rotor:

It adopts entire cast steel structure with high mass force, solid and durable, convenient to install the hammer.

4. Impact Plate:

It is made from new type abrasion material and hanging freely inside the equipment. One end connect with the two sides of the rack through hanging shaft hinge, another end is bearing in the upper rack cone gasket through stay bolt which is adopt a sphere gasket, it can prevent the equipment damage by non-crushing material when crushing material.

5. Hammer:

It is made from new type abrasion material and fixed on the rotor through wedge block.
