Technical Data

Type: ZKZL-15-ZKZL-19

Volume: 500-1000(L)

Power: 90-132(kw)

TTL Weight: 5-10(t)

OUR ADVANTAGE

1. The whole process of granulation is inside the fully enclosed drum, and the drum interior is at slightly negative pressure state. It is without dust pollution, clean and environmental friendly.

2. Feed - mixing - nucleation - granulators - shaping，the whole process is controlled by computer through PLC. It is easy operation and high degree of automation;

3. After abrasion treatment, the rotor surface had made precise balancing to ensure movement stability, reliability and wear resistance under high rotational speed. So that the machine can work stable and reliable;

4. The scraper surface has had appropriate wear treatment. The bottom and the inside of the drum is equipped with wear-resistant liner, therefore, the entire drum parts have a long service life;

5. The drum discharge part is fully hydraulic drive. It has the advantages of high automation and reliable drum sealing.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

INTRODUCTION

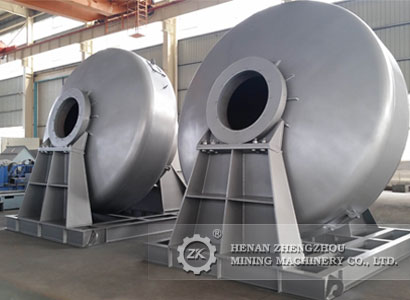

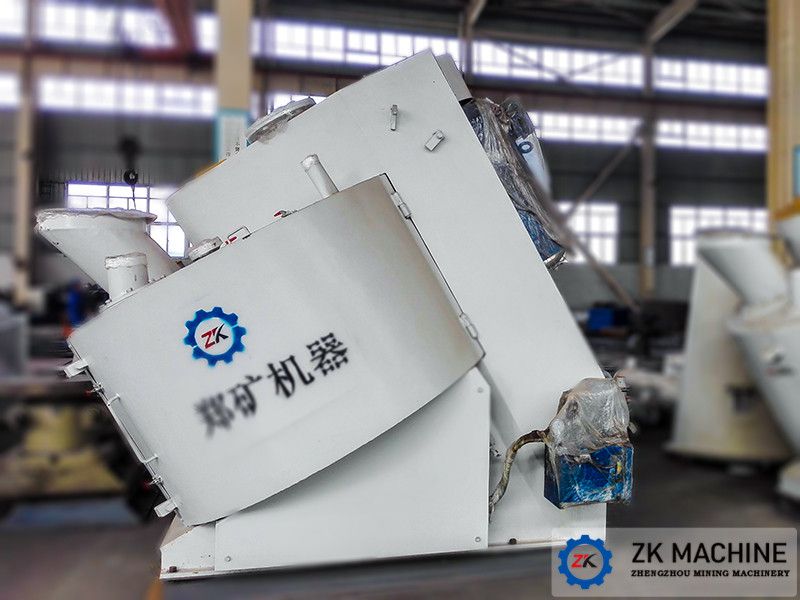

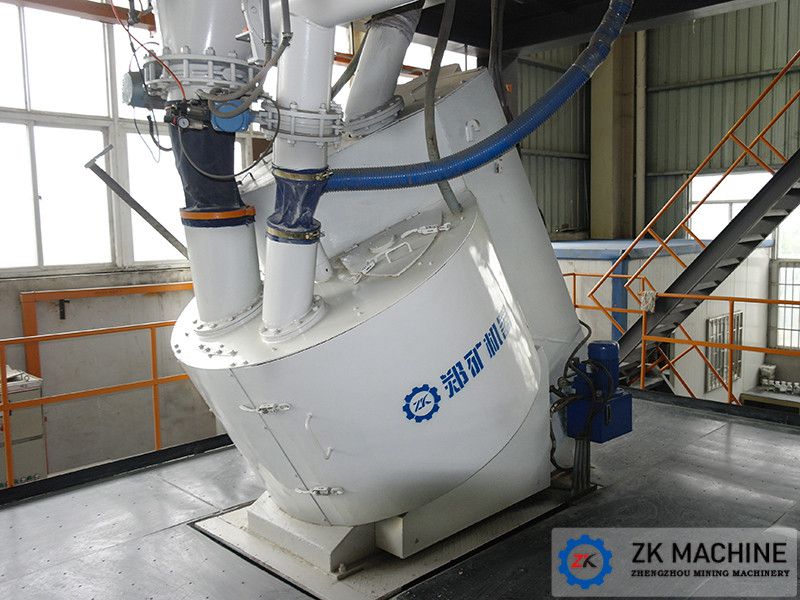

Ceramic sand granulator is designed on the base of learning foreign advanced technology and studying domestic oil fracturing proppant production status. It is mainly used for production of oil fracturing proppant (ceramic sand), and also be applied for balling powder, granular, small lump material such as coal powder, limestone, coal, clay and etc.

Application

It is mainly used for production of oil fracturing proppant (ceramic sand), and also be applied for balling powder, granular, small lump material such as coal powder, limestone, coal, clay and etc.

Working Principle

The working principle of ZKZL Series Clean Powerful Granulator is to utilize the reverse movement between low speed clockwise rotating drum and high speed counterclockwise rotating rotor to stir material at high speed. There are separate scrapers at the bottom part and wall of the drum. The interaction between drum wall cleaning by scraper and the movement with inclined rotating drum forms a special flow field to change the movement direction of material. Powdery material is "rubbed" to cores during high-speed movement and then and then granulated into a ball.

SPECIFICATIONS

Type	Max Capacity		Power （kW）	TTL Weight （t）
Type	Weight （kg）	Volum （L）	Power （kW）	TTL Weight （t）
ZKZL-15	400	500	90	5
ZKZL-16	500	600	110	6.5
ZKZL-19	800	1000	132	10

PROCESS
Ceramic sand granulator Granulator is mainly composed by the rotor, rotor component, scraper, discharger, supports and other components. The main structural features are:

1.The rotor and the drum speed are controlled by continuously variable frequency. It's convenient to adjust the rotor and drum speed according to process requirements. It's also more energy-efficient and lower energy consumption;

2.The particular eccentric position of internal drum has a rotor. The rotor is connected with the main motor through a belt. There's a planetary rotor disk at the bottom of the rotor. The Rotor disk and drum take reverse high-speed rotation. It is convenient for formation of specific flow field to achieve fast, powerful granulation;

3.The inside and the bottom of the drum are arranged a wall scraper and bottom scraper which can be adjusted at upper and lower, left and right direction. It can easily adjust the gaps between wall scraper, bottom scraper and the drum to make up the scraper wear.

4.All the wearing parts of planetary rotor disk and scraper are taken special surface treatment to have high hardness and wear resistance;

5.The connection parts between drum and supports have multiple sealing materials to ensure internal drum without dust leakage to achieve clean, environmentally friendly production;

6.There's a hydraulic driven discharger at the bottom of the drum. It ensures good sealing while achieving discharging automated control.
