DISC GRANULATOR







Technical Data





Model: YCQ2200D-YCQ3600D



Capacity(t/h): 4.24



Power(kw): 7.5-15



Application: ceramic sand,ore dressing



ADVANTAGE

1. Simple structure, easy-to-adjust and excellent in performance.



2. This machine is suitable for conveying of materials with granularity less than 50mm, while it is not suitable for cohesive materials, easy-to-flow or hard-to-flow materials.



3. It is widely used in gold Concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding.



INTRODUCTION

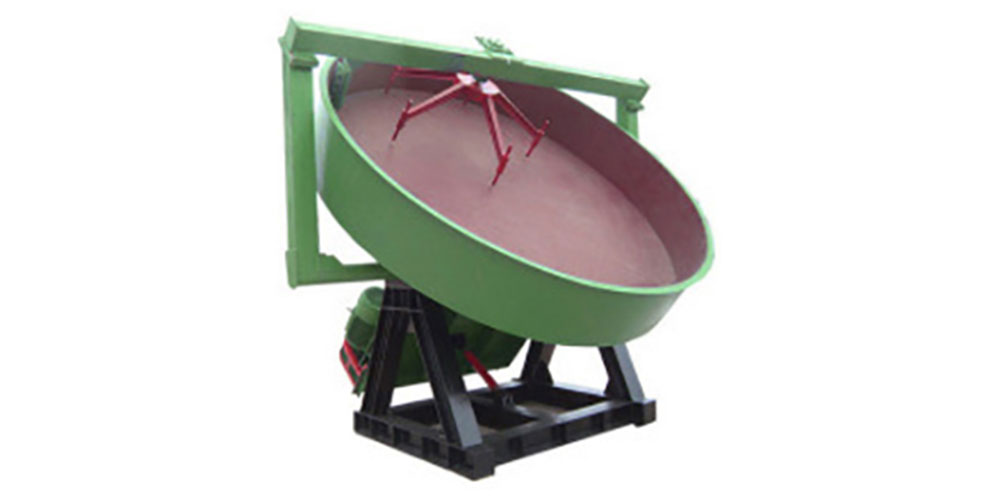

Disc Granulator is divided into unpowered scraper disc granulator (PQW) and powered scraper disc granulator (PQ). The two kinds of disc granulator are all have the feature of simple structure, convenient operation, the moisture of pellet can be easily control and high hardness. The disc granulator adopts massive structure, the disc bottom reinforced by multiple radiation steel plate. The motor and reducer adopt flexible belt driving, so the life time is increased by the smooth start and low impact.

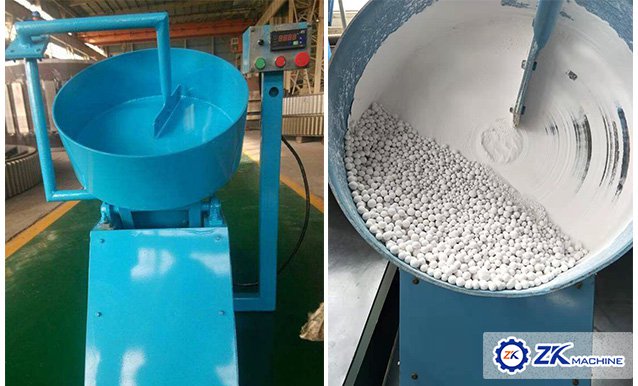

We supply rich models and laboratory type to meet your requirements. More information and price, please contact us! You can also bring or send materials to our factory to make a granulation experiment.

Application:
The disc granulator is the main equipment for pelletizing by powder material and widely used in the following industry:

Environmental protection: fly ash, clay, dust, sludge, etc.
Chemical industry: chemical fertilizers, phosphate fertilizers, mineral materials, lime, carbon black, etc.
Building materials: LECA balls, refractory ceramsite, clay ceramsite, shale ceramsite, ceramsite concrete, etc.
Ceramics: proppants, abrasive materials, etc.
Metallurgy: iron ore, zinc ore, lead ore, alumina, etc.

SPECIFICATIONS

Specifcation

Circular

Capacity(t/h)

Motor



Reducer

(mm)

(mm)

slope(o)

speed(rpm)

Model

Power(kw)

YCQ2200D

2200

380

40-60

16

2-3

Y132M2-6

5.5

ZQ400

YCQ2500D

2500

420

40-55

15

3.5-4

Y132M-4

7.5

SW5

YCQ2800D

2800

460

40-55

13.5

5-6.5

Y160M-4

11

SW5

YCQ3200D

3200

500

40-55

12

6.5-8

Y160M-4

11

SW5

YCQ3600D

3600

550

40-55

10.5

8-10

Y160L-4

15

SW6





PROCESS

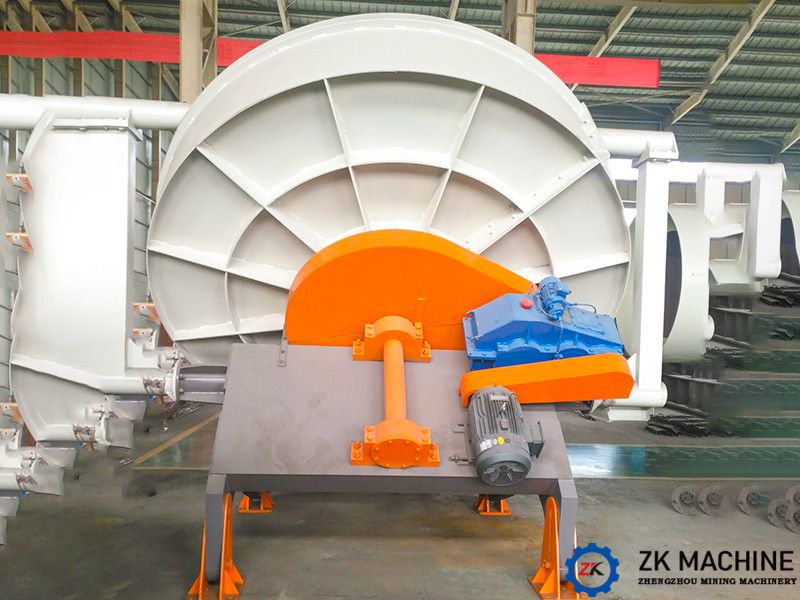

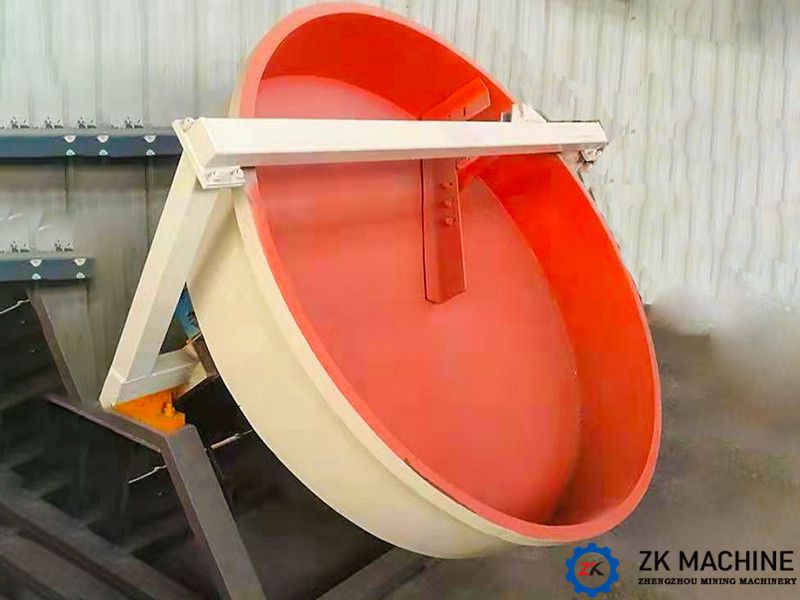

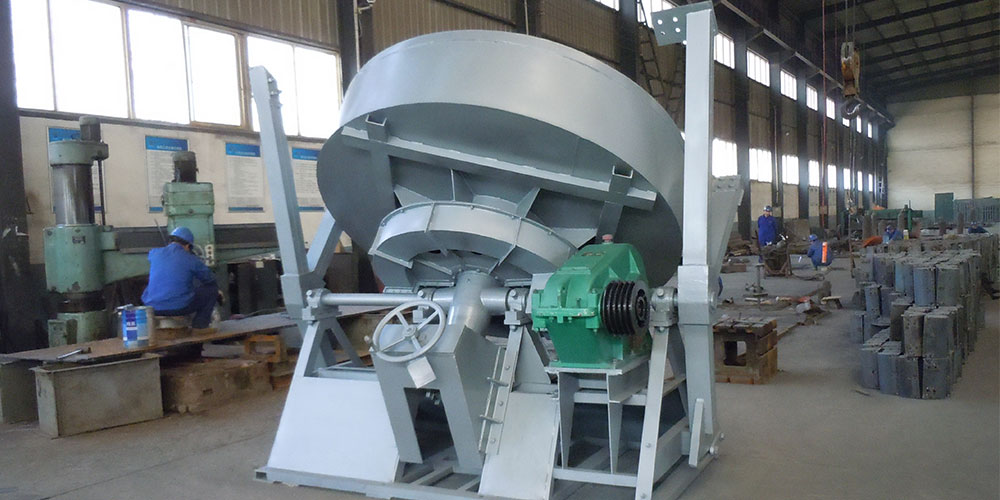

The disc pan granulator is composed by disc, driving device, rack, pedestal, scraper etc. The structure feature is:

1. The disc bottom reinforced by multiple radiation steel plate with high strength and stiffness



2. The driving gear adopts high frequency quenching process with long life time.



3. The reducer and motor adopt flexible belt driving with smooth start and low impact.



4. The driving system installed bridging device which can reduce the impact between gear and reducer, and increase the equipment running stability, at the same time the main accessories working life also increased.



5. The auxiliary power consumption was reduced by the unique unpowered scraper device.





If you are interested in our product design, specification, spare parts, quotation etc, please feel free to contact us by WhatsApp +8618037866379, or email us at zkeqpt@zkcorp.com.
