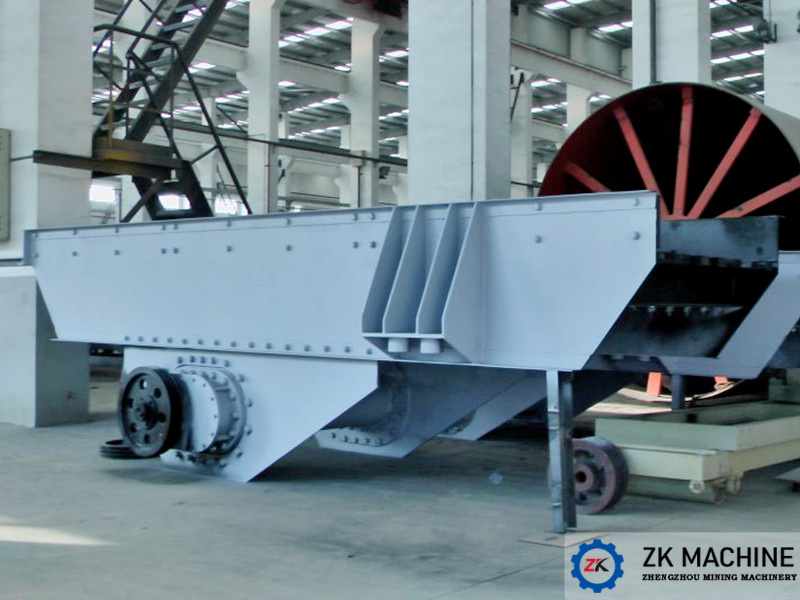

GZT VIBRATING FEEDER







Technical Data



Model: GZT-0724-GZT-1560



Max Feed Size: 450-1000(mm)



Capacity: 30-600(t/h)



Application: mine,cement,lime plant

ADVANTAGE

1. Vibrating source is motor, small noise, strong vibrating force. Low energy consumption.



2. Stable vibrating force and easy adjustment, can change and control material feeding any time.



3. Gap between stick on outlet are adjustable. It can separate soil and sand during feeding process, the pre-screen capability can improve the coarse crushing capacity.



4. Material trough use frame type connect with rivet, and side plate is bend by a entire steel plate, compact structure, good rigidity, fatigue resistance.



5. Both backplate and stick are made by ware-resistant material, strong structure, high strength, impact resistance.



6. Big processing capacity, reliable running, easy maintenance.



INTRODUCTION

SPECIFICATIONS

Model

Max Feeding Size(mm)

Capacity(t/h)

Motor Power(kW)

Angle(°)

Weight(kg)

GZT-0724

450

30~80

2×1.5

10

2936

GZT-0932

560

80~150

2×2.4

10

3359

GZT-0940

560

80~180

2×3.2

10

3608

GZT-1148

600

150~300

2×5.5

10

4808

GZT-1256

800

180~400

2×7.5

10

5994

GZT-1560

1000

400~600

2×13

10

9896







PROCESS

GZT vibrating feeding composed of material trough, vibrating exciter, spring supporting the structure features are

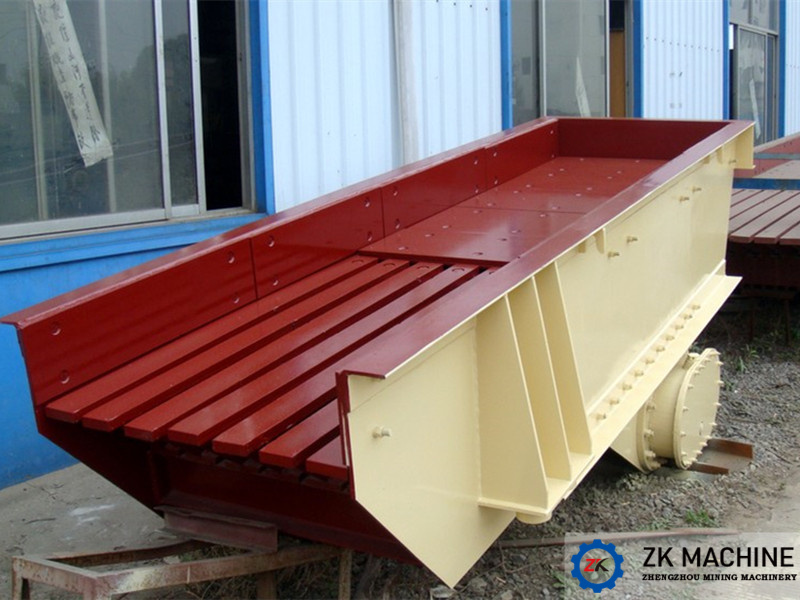

1. Material trough

It is material conveying and feeding part, and integrated framework, riveted by lock rivet. The lining of trough: feeding section is blind plate (incline angle is 0~5°) and outlet section is sticks (incline angle is 15~20°).



2. Vibrating exciter

Vibrating exciter is key part of vibrating feeder, use new type vibration motor as exciter, stable performance reliable, easy adjustment.



3. Spring support

It is seated mounted, use steel spring as damper spring, operation reliable and long service long.





If you are interested in our product design, specification, spare parts, quotation etc, please feel free to contact us by WhatsApp +8618037866379, or email us at zkeqpt@zkcorp.com.
