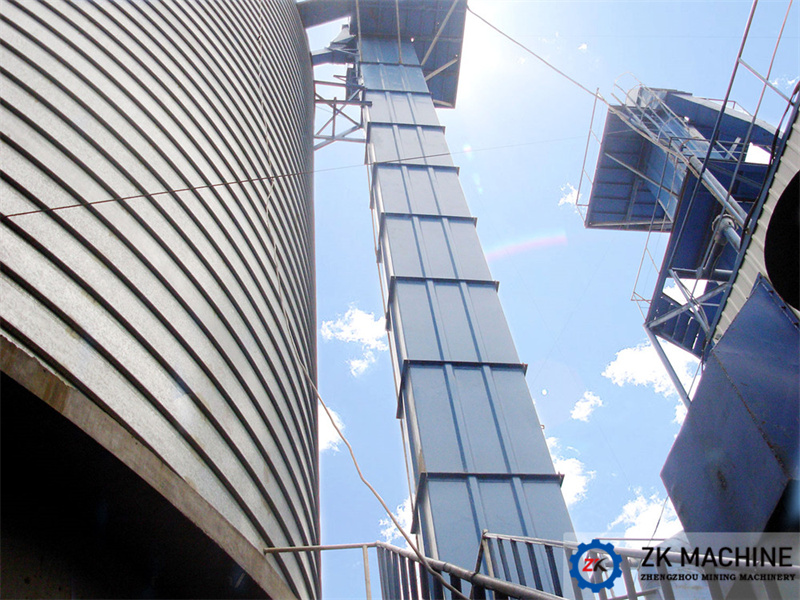

TD BUCKET ELEVATOR







Technical Data



Model: TD160-TD450



Type: Belt Type



Capacity: 9-68(m³/h)



Elevating Height (m): ≤39.28

ADVANTAGE

1. Widely usage, it can elevate powdery material, particles, small lump material.



2. Flexible to select mixing or centrifugal discharge method according to material properties.



3. Good sealing, no dust escape. Clean and environmental protection.



4. Using rubber belt with small dead load, flexible, stable operation, thus elevating speed and process efficiency is higher.



INTRODUCTION

TD Bucket elevator use belt as dragging device, it mainly use for conveying material with bulk densityρ<1.5t/m³in vertical direction, which can be powdery material, particles, small lump, less abrasive material. Use normal belt, the temperature of conveying material should not exceed 60℃, Use wire belt, conveying material temperature can reach 80℃,use heat resistant belt, material temperature not exceed 150℃, elevating height is 4~30m.Normal model of TD type bucket elevator is TD160、TD250、TD315、TD400 etc. conveying capacity is 3.1~66m³/h. which is widely use in chemical engineering, metallurgy, construction material, food, mining industries etc.

TD Bucket elevator is designed for vertical transportation powder, granular materials and small block and grinding of small materials, such as: coal, cement, stones, sand, clay, ore and so on. or other industries of dry mortar for construction, chemistry, etc.

SPECIFICATIONS

Model Type Capacity (m³/h) Hopper Drive Revolving Speed Max Size Elevating Height
Volume Bucket Pitch Bucket Width Speed
Deep Bucket Shallow Bucket Deep Bucket Shallow Bucket (mm) (mm) (m/s) (r/min) (mm) (m)
TD160 Belt Type 16.00 9.0 1.20 0.49 350/280 160 1.40 67 25 4.28~39.28
TD250 Belt Type 38.00 20.00 3.00 1.12 450/360 250 1.60 61 35 3.84~38.94
TD315 Belt Type 42.00 28.00 3.75 1.95 500/400 315 1.60 61 45 4.298~38.798
TD450 Belt Type 68.00 40.00 5.90 3.10 560/480 400 1.80 55 55 3.4-38.68

Note: The volume of the hopper in the table is the volume when the hopper is filled with water, which is similar to the actual filling volume. Therefore, the filling factor is not considered in the calculation formula of the conveying volume. The filling factor should be determined according to the particle size of the material in the specific selection, so as to correct the conveying volume given in this table.



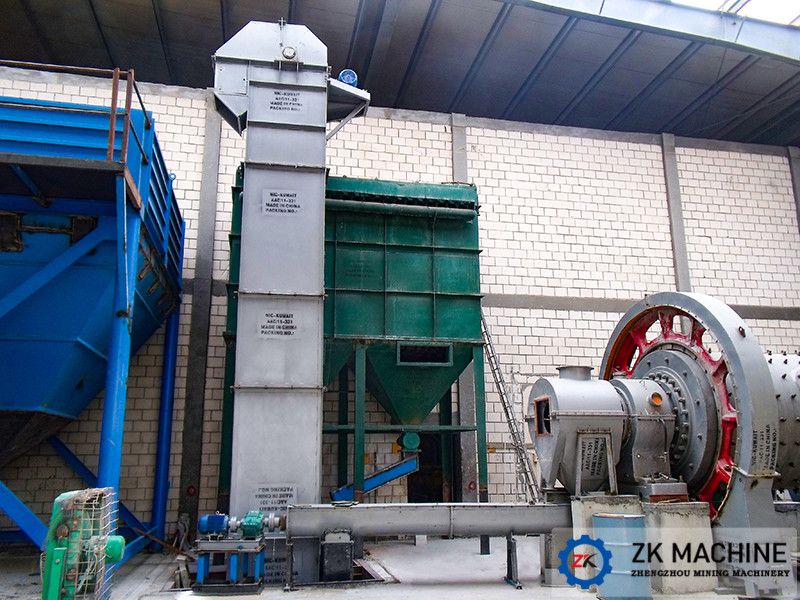

PROCESS

TD type bucket elevator is consist of driving device, top section, bucket, rubber belt, middle cover, middle cover with manhole, bottom section. The features are

1. Using rubber belt as drag device, it has features such as small dead load, flexible, stable operation etc.



2. The middle cover of equipment is welded by bending parts, which make each section of cover have commonality and interchangeability, it ensure cover has good verticality after assembly.



3. Cover and head cover has several access doors, it is easy to check and replace spare parts once fault happens or change wearing parts.



4. Between covers and access door to cover have seal, which ensure no dust escape. Clean and environmental protection.



5. Set reverse stop device, which can preventing accident cause by power off and other problem.



6. Feeding inlet have high position and low position, high position has angle 60° with horizontal, which is used for elevating wet and powdery material. Low position has angle 45° with horizontal, which is used for elevating dry and good scattering material.
