Superphosphate Production Line







Technical Data

Production capacity: 20,000-100,000 tons/year

Raw: superphosphate

Equipment configuration: granulator, single-cylinder dryer, single-cylinder cooler

ADVANTAGE

1. Reduce the contact area between phosphorus and soil and reduce the chance of phosphoric acid being fixed in the soil.

2. Convenient for mechanical application and improve work efficiency

3. After passing through the dryer and cooler, the particle shape changes greatly and the morphology is better.

INTRODUCTION

Superphosphate, also known as ordinary superphosphate, or superphosphate for short. It is made by decomposing phosphate rock with sulfuric acid or sintering calcium carbonate and phosphate rock. It is usually in powder or granular form and can be used as raw material for phosphate fertilizer and compound fertilizer.

Our company's granular superphosphate production line uses the crystallized product of the reaction between phosphate rock and sulfuric acid, ground to 99 mesh, concentrated and filtered as raw material. The particle size of the raw materials is less than 3mm when they are first produced. They will agglomerate during storage and transportation. The particle size distribution range is wide, the moisture is 13%, and the pH value is 3.5.

SPECIFICATIONS

Model

20,000~30,000 t/a

50,000 t/a

100,000 t/a

Granulator

Disc Granulator, Dia 2.2m

Rotary Granulator Φ1.8mx7m

Rotary Granulator Φ2.2mx8m

Dryer



Rotary Dryer Φ1.8mx18m

Rotary Dryer Φ2.2mx22m

Cooler



Rotary Cooler Φ1.5mx16.5m

Rotary Cooler Φ1.8mx16.5m




PROCESS

(1) Feeding and crushing

Superphosphate with a wide particle size range is fed to the silo on a forklift and sent to the crusher via a belt for crushing.


(2) Granulation

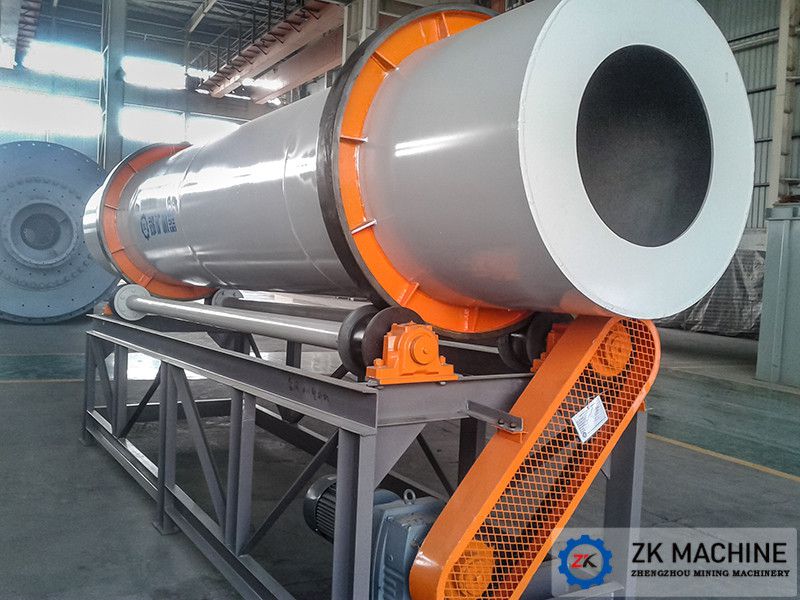

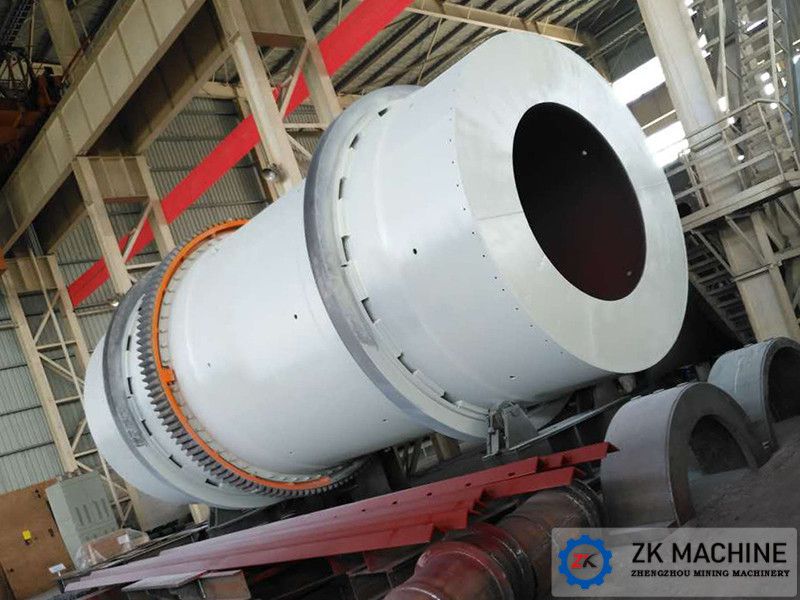

The superphosphate crushed by the crusher is transported to the disc granulator or drum granulator via a belt conveyor for granulation.



(3) Drying

The superphosphate particles enter the single-cylinder rotary dryer for drying, with a moisture content of 6-8%. The particulate matter in the exhaust gas is removed by the bag dust collector and then discharged to the atmosphere.


(4) Cooling

The dried semi-finished superphosphate granules enter the single-cylinder rotary cooler for cooling.


(5) Screening

The materials coming out of the cooler are first coarsely screened, and the coarse materials are returned to the raw material belt conveyor to be used as raw materials again. The materials under the screen pass through the bucket elevator and then enter the screening machine for fine screening. The materials above the screen are regarded as qualified products, and the fine materials under the screen are sent to the feeding belt conveyor as raw materials.


Active Lime Production Line 6.jpg
