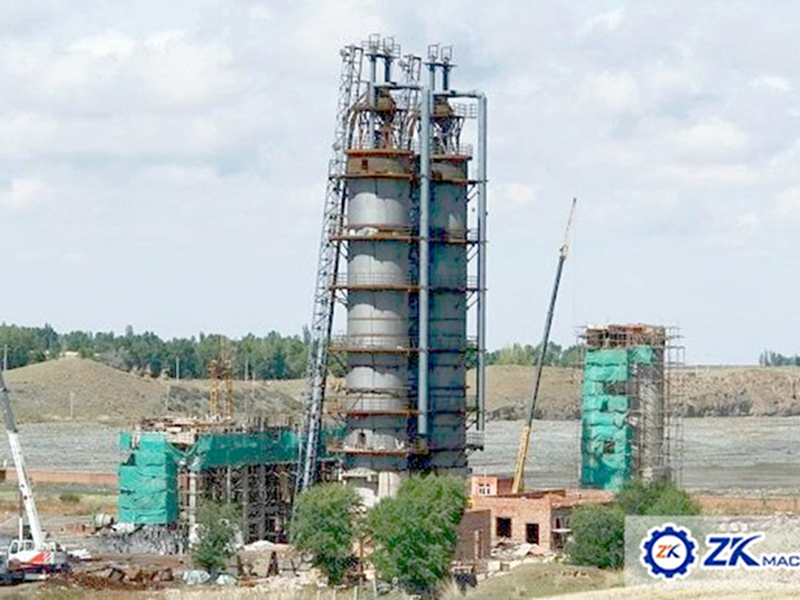

VERTICAL SHAFT KILN





Technical Data



Capacity: 50-500(t/d)



Fuel: Mixed Fuel,Gas



Raw Material: bauxite, laterite, iron ore, Lime



Application: Cement Palnt, Active Lime Plant





ADVANTAGE



1. The shell of kiln use four layer refractory in vertical masonry, good effect of thermal insulation, the temperature of shell will be controlled higher 60℃ than environment, save energy remarkably.

2. Minimum decrepitation of solid products and minumum erosion of refrectory linings due to slight movement of particles relative to each other

3. Use of alternative fuels like low volatile coal, petroleum coke, lignite etc.

4. Use of alternate raw materials like bauxite, laterite, iron ore, Lime, Sea Shells etc.

5. Less cover area, because the vertical kiln in vertical layout, feeding use the single bucket elevator in high angle layout, each functional area is decorated compact, greatly reduces the cover area.

6. Simplicity of construction and operation, Low initial cost

7. High thermal efficiency & high volumetric efficiency



INTRODUCTION

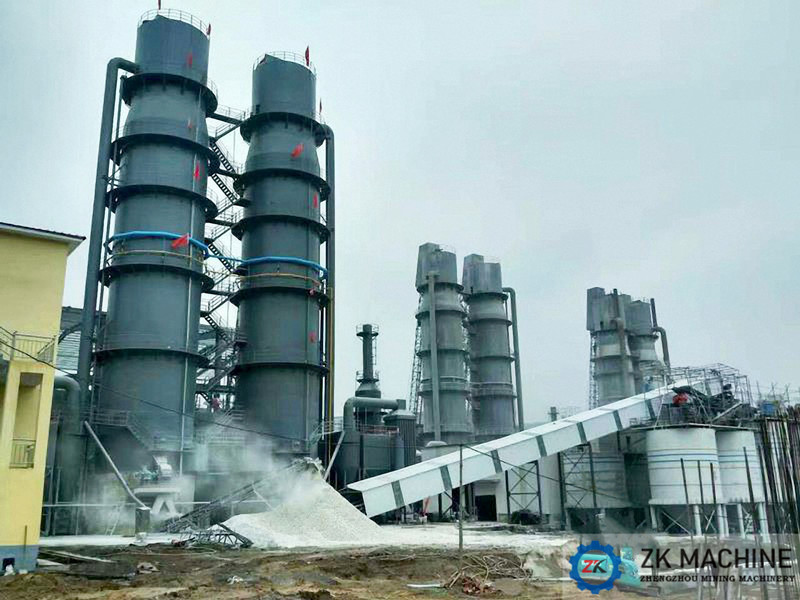

Lime vertical shaft kiln, is used for calcination limestone, it's the most important equipment in lime production line. Due to has low energy consumption, less cover area, less investment, wide applicability fuel, and more advantages, it was widely used in metallurgy, construction materials, calcium carbide, nanometer calcium carbonate, aerated concrete, sugaring, etc. It is especially suitable for the production Nanometer calcium carbonate. Investigate its reason that the concentration of CO2 in flue gas jet can reach more than 35%, CO2 recovery cost is low.

Lime vertical shaft kiln, is used for calcination limestone, it's the most important equipment in lime production line. Due to has low energy consumption, less cover area, less investment, wide applicability fuel, and more advantages, it was widely used in metallurgy, construction materials, calcium carbide, nanometer calcium carbonate, aerated concrete, sugaring, etc. It is especially suitable for the production Nanometer calcium carbonate. Investigate its reason that the concentration of CO2 in flue gas jet can reach more than 35%, CO2 recovery cost is low.

SPECIFICATIONS

Technical Parameters Of Vertical Klin (Mixed Fuel)

Capacity(t/d)

Effective Volume

Effective Height

Effective Section

Limestone Size

Heat Consumption

CaO

Activity

(m3

(m)

Dia.(m)

(mm)

(kJ/kg)

(%)

(mL)

100

98

20

Ø2.5

30~60/40~80

<4600

>90

>300

120

141

20

Ø3.0

30~60/40~80

<4600

>90

>300

150

202

21

Ø3.5

30~60/40~80

<4500

>90

>300

200

301

24

Ø4.0

30~60/40~80

<4500

>90

>300

300

397

25

Ø4.5

30~60/40~80

<4400

>90

>300

400

491

25

Ø5.0

30~60/40~80

<4200

>90

>300

500

735

26

Ø6.0

30~60/40~80

<4200

>90

>300

Remarks: All above data are for reference only.

















Technical Parameters Of Vertical Lime Kiln (Fuel: Gas)

Capacity(t/d)

Effective Volume

Effective Height

Effective Section

Limestone Size

Heat Consumption

CaO

Activity

(m3

(m)

Dia. or L×W(m)

(mm)

(kJ/kg)

(%)

(mL)

50

70

20

Ø2.0

30~60/40~80

<4600

>90

>300

70

80

20

Ø2.5

30~60/40~80

<4600

>90

>300

80

100

20

Ø2.5

30~60/40~80

<4500

>90

>300

100

120

20

Ø2.7

30~60/40~80

<4500

>90

>300

120

140

20

Ø3.0

30~60/40~80

<4400

>90

>300

130

150

21

Ø3.0

30~60/40~80

<4200

>90

>300

150

200

20

2.5×4.5

30~60/40~80

<4200

>90

>300

Remarks: Above data are for reference only, and suitable for Vertical Kiln which use low heat fuel.  Utilization coefficient of Vertical Kiln which use high heat fuel is higher.







PROCESS



1. Support device: advanced shaft structure, automatic temperature measuring device and electrical heating.



2. Catch wheel: including two kinds of mechanical wheel and hydraulic pressure.



3. Gears: single or double. Control the rotating speed by variable motor, DE machine and frequency variable motor. Be reliable, energy saving and efficient.



4. Cylinder tyre bolster: lower bolster has three types: fixed, zoom and floating. The structure is simple. Replacement is convenient and won’t hurt cylinder.



5. Sealing equipment: there are many kinds for choice according to kiln models, including air cylinder edge sealing, spring edge sealing, graphite block sealing and combination for above. The feather is adaptive for cylinder rotating and swing. And sealing effect is very good.



6. Kiln head hood: including stationary type and flexible type.
