LIME ROTARY KILN







Technical Data



Model: Φ2.2x38 - Φ5.1x72 (m)



Capacity: 50 - 1200 (t/d)



Material: Limestone, Dolomite, Kaolin, etc.



Application: Quick lime & hydrated lime plant



ADVANTAGE

1. According to the character of limestone and its calcination requirement, the structure of kiln inlet and outlet sections has been optimized. It can resolve the problem of material returning back to kiln inlet and the leakage of dust.



2. Evenly heating for limestone, low rate of less calcination and over calcination. Especially suitable for the high activity lime for steel making.



3. Technical configuration is optional: matched vertical preheater can use the high temperature from rotary kiln to preheating the limestone from room temperature to decomposition condition; matched vertical cooler can cooling down the high temperature of lime in the shortest time, and process can increase the activity of lime and also easy for transportation and storage.







INTRODUCTION

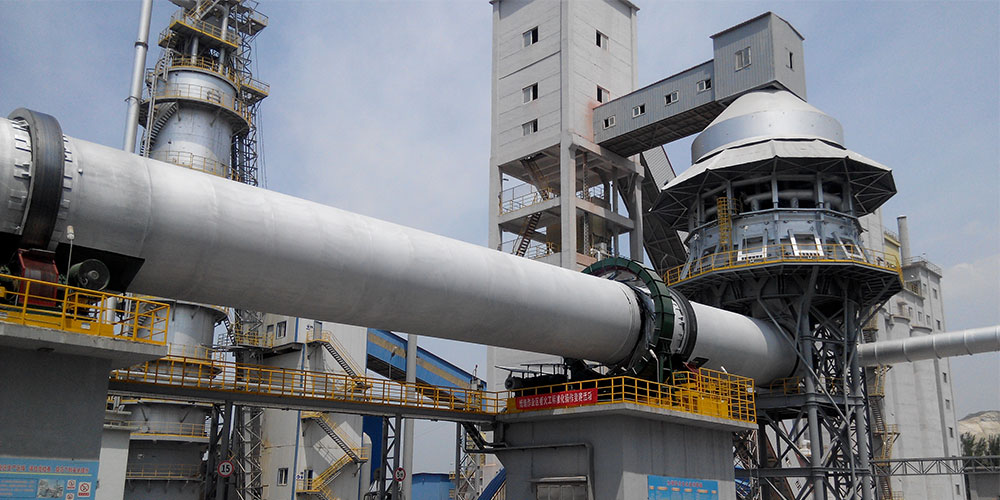

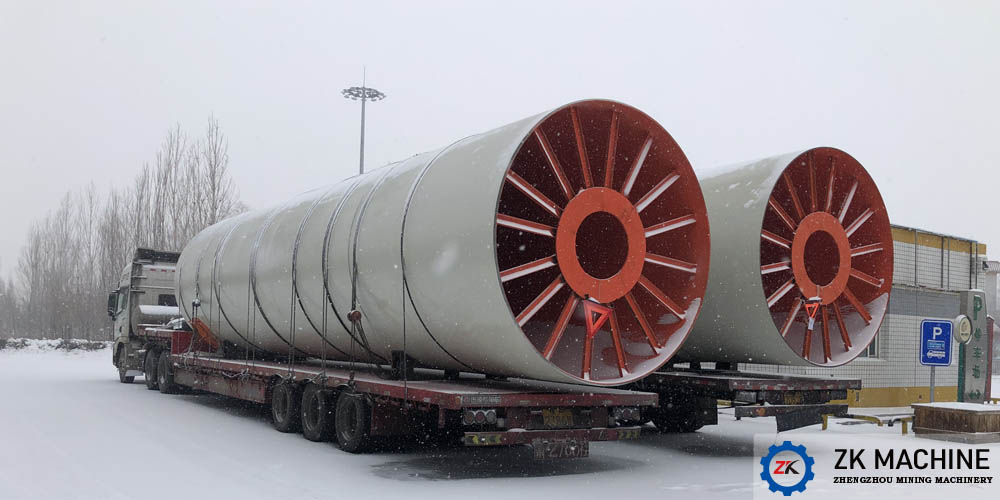

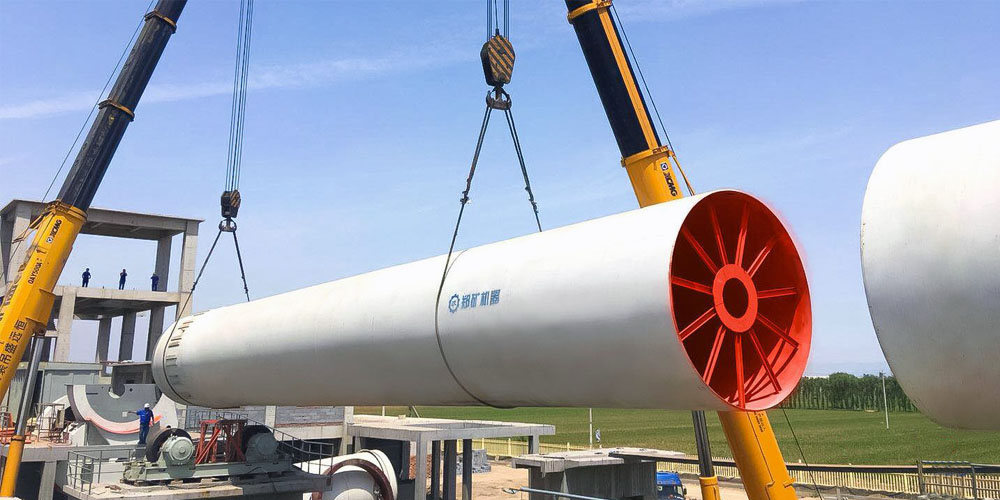

Lime rotary kiln is used to produce quicklime through the calcination of limestone (calcium carbonate). Lime rotary kiln is specialized design for production of active lime.

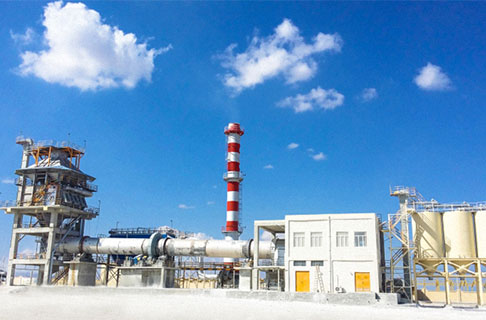

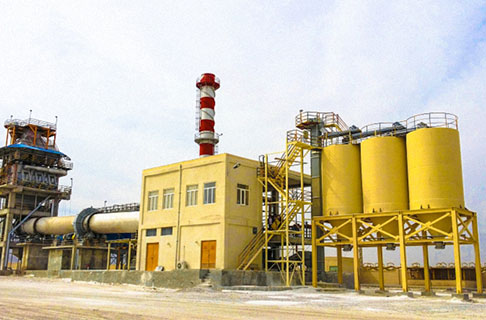

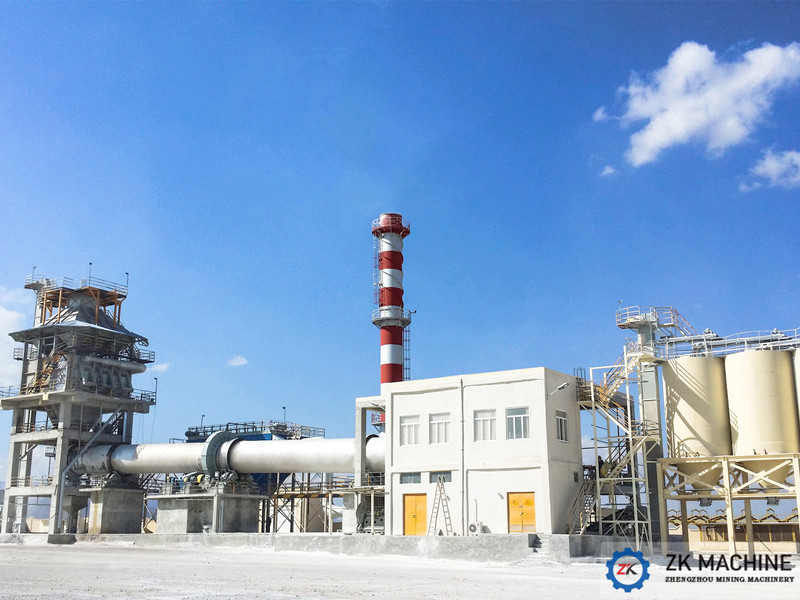

Our lime rotary kiln can work with vertical preheater and vertical cooler to achieve the advantages like high use ratio of raw materials, complete calcination, even quality, good quality lime, high capacity output, environmental and energy saving, simple operation and longer working life. This kiln is very suitable for limestone calcination for industries like metallurgy, chemical, construction materials and etc.



We also supply complete set of equipments for lime production line with capacity from 50 tpd to 800 tpd: rotary kiln / vertical kiln, preheater, cooler, bag filter, crusher, ball mill, conveyor, bucket elevator, vibrating feeder, etc.


SPECIFICATIONS

Capacity (t/d) 150 200 250 300 350 400 500 600 800 1000 1200
Main Equipment Main supporting equipment models and technical and economic indicators
Vertical Preheater YRQ04 YRQ06 YRQ06 YRQ08 YRQ08 YRQ10 YRQ12 YRQ12 YRQ14 YRQ18 YRQ20
Rotary Kiln Φ2.5×40m Φ2.8×43m Φ3.0×48m Φ3.2×50m Φ3.3×52m Φ3.6×55m Φ3.8×58m Φ4.0×60m Φ4.3×65m Φ4.9×70m Φ5.1×72m
Vertical Cooler LSF36 LSF44 LSF56 LSF80 LSF112
Calcination Temperature /℃ 1100±50
Energy Consumption Index /(kCal/kg) 1200±100 ≤1150 ≤1100
Power Consumption Index /(kW·h/t) 40±5
Limestone: Lime 1.7~1.78:1
Light and Over burnt Rate /% ≤5
Lime Activity /ml ≥340(depends on the composition of limestone)
Lime Discharging Temperature /℃ Ambient Temperature +60
Limestone Feeding Size /mm 10~20/20~40
Emission Concentration /(mg/Nm3) ≤10
Annual Working Day / Days ≥340
Overhaul Cycle / Year 1~3
Labor / Shift 2~3
Applicable fuel Coal powder, Coke oven gas, Semi-coke furnace gas, Converter gas, Blast furnace gas, Calcium carbide furnace gas, Natural gas, Diesel oil, Heavy oil, Liquefied petroleum gas, biomass fuel etc.



PROCESS

1. Support device: advanced shaft structure, automatic temperature measuring device and electrical heating.



2. Catch wheel: including two kinds of mechanical wheel and hydraulic pressure.



3. Gears: single or double. Control the rotating speed by variable motor, DE machine and frequency variable motor. Be reliable, energy saving and efficient.



4. Cylinder tyre bolster: lower bolster has three types: fixed, zoom and floating. The structure is simple. Replacement is convenient and won’t hurt cylinder.



5. Sealing equipment: there are many kinds for choice according to kiln models, including air cylinder edge sealing, spring edge sealing, graphite block sealing and combination for above. The feather is adaptive for cylinder rotating and swing. And sealing effect is very good.



6. Kiln head hood: including stationary type and flexible type.





If you are interested in our product design, specification, spare parts, quotation etc, please feel free to contact us by WhatsApp +8615290898115, or email us at zkeqpt@zkcorp.com.
