Technical Data

Capacity: 1TPH-4TPH

Application: Pulverization coal prepration production line

Main Materials: Anthracite, Meagre Coal, Soft Coal, Brown Coal, Shale

Main Equipment: Coal ball mill, powder seperator

OUR ADVANTAGE

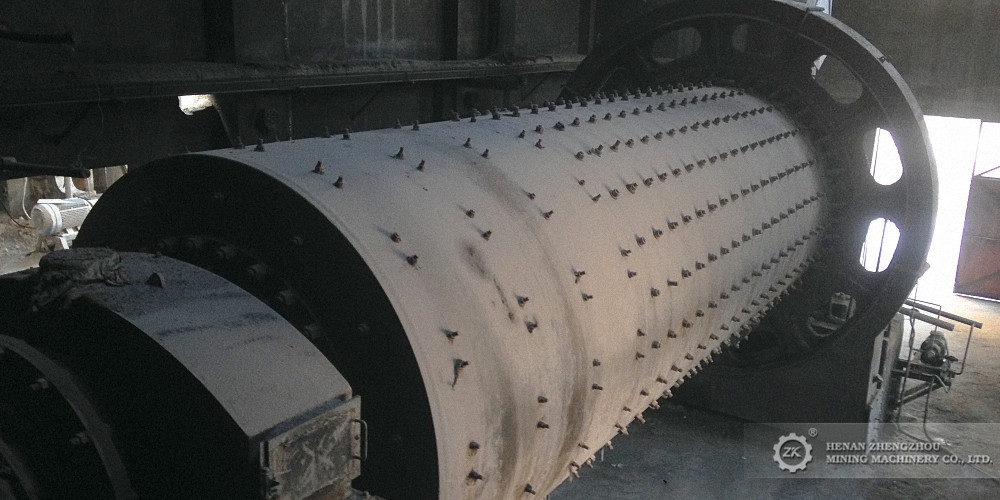

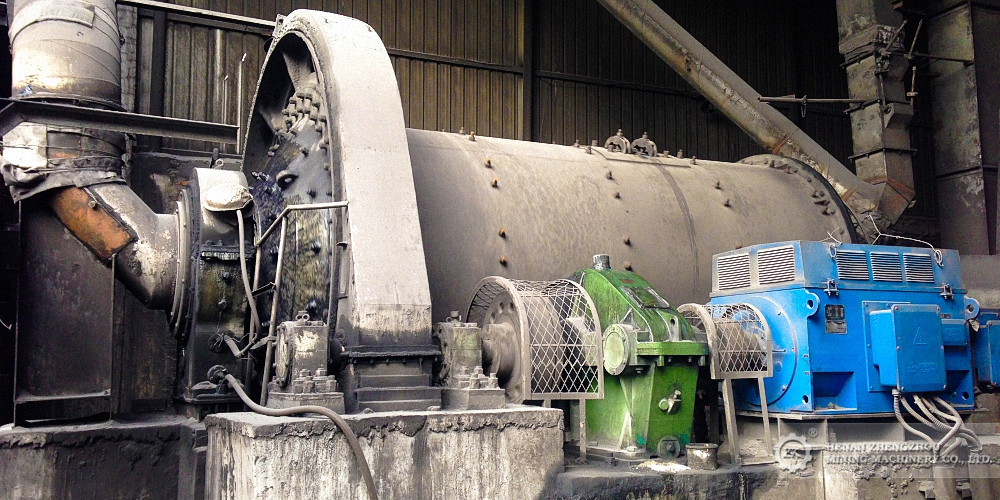

1. Main bearing pedestal of ball mill adopts water circulation device to reduce the working temperature of bearing. This solution can prevent the shorten of lifetime for bearing which is caused by high temperature of material.

2. Lubrication for main bearing bush adopts hydraulic oil station. This solution can increase lifetime of alloy bushing and reduce the resistance during the operation of ball mill.

3. Latex coupling is applied between gearbox & pinion. It has the advantages such as good balance, better adaptability, no need lubrication, and good performance of compensation for 2 shafts’ relative shifting.

1

INTRODUCTION
2

SPECIFICATIONS
3

PROCCESS

Our Pulverized Coal Preparation Production Line is composed of Raw Coal Storage & Transportation System, Grinding System, Dust Collecting System, Electrical & Instrument Automation System. By the consideration of safety protection for equipment and system, explosion venting valve and nitrogen protection port are adopted at hot air inlet pipeline of Air Swept Coal Mill and coal air output pipeline. Speed of Powder Separator is regulated by VVF, the output fineness could be controlled by adjustment of frequency converter by remote control.

Application:
The coal powder grinding system is mainly used for burner of burning system in cement plant, lime plant etc, which can also applied in making coal powder which are used for the boilers in power plant and thermal power plant.

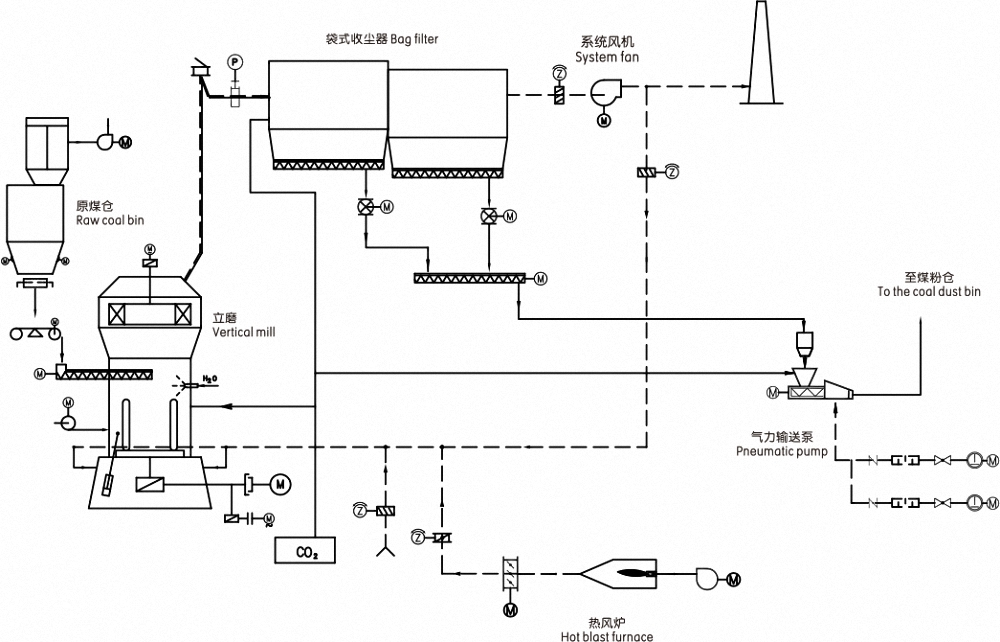

Production Process Flow Chart

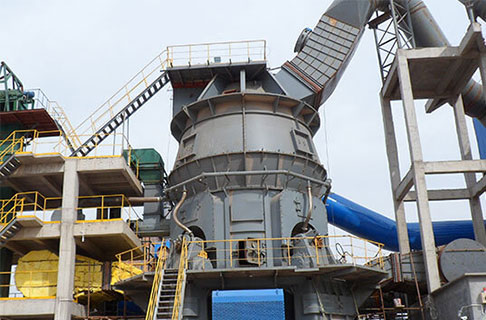

The raw coal is stored in the raw coal bunker and fed into the vertical mill by the belt weigher in bottom of raw coal bunker. After drying, grinding and powder classifying, the coarse coal powder with unqualified size will be fall down onto the millstone again for grinding. Meanwhile the qualified coal powder will be discharged with airflow, and entered into the high concentration bag filter especially for coal mill, the air cleansing by bag fiter will be exhausted into the atmosphere., The coal powder collected by the dust collector will be conveyed into coal powder silo through the conveyor belt. Any sundries inside the raw coal, like coal gangue, metal block, etc, will be discharged out of the mill by vane.

The coal powder prepareation system is designed with safety measures, like anti-explosion value, inert gas fire extinguishing system, etc.
Project Cases

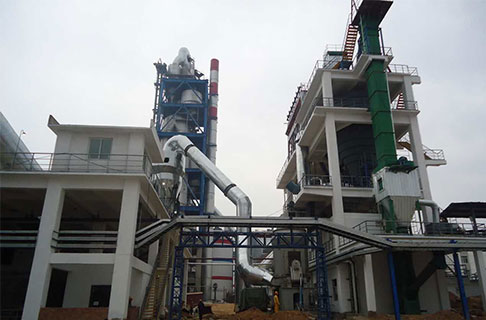

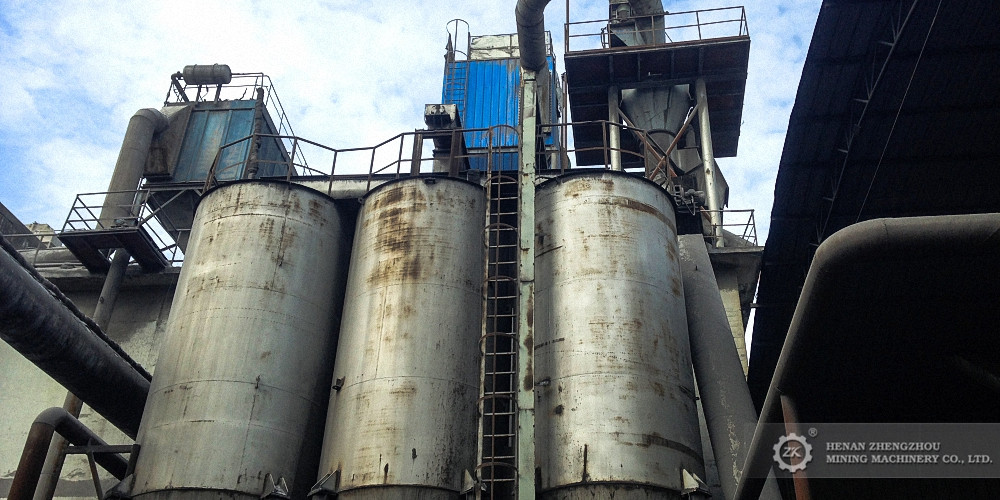

Pulverized Coal Preparation Station in Shangdong

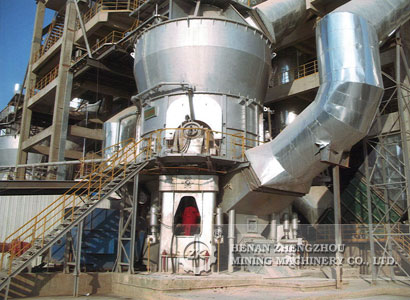

Coal Powder Vertical Grinding Mill in Ningxia

Process equipment for pulverized		Electrical equipment for pulverized
coal preparation station		coal preparation station
No.	Equipment Name	No.	Equipment Name
1	Grid valve	1	Low voltage incoming cabinet
2	Belt scale feeder	2	ID fan frequency cabinet
3	Permanent iron remover	3	Control & power distribution cabinet
4	Bucket elevator	4	Operation desk
5	Heavy hammer air lock	5	Inlet air temperature
5	flap dust discharge valve	5	Inlet air temperature
6	Air swept coal mill	6	Outlet air temperature
7	Lubrication oil station	7	Coal powder silo temperature
8	Dynamic separator	8	Dust hopper (bag filter) temperature
9	Explosion-proof bag filter	9	Temperature of head bearing of ball mill
10	Star type discharger	10	Temperature of tail bearing of ball mill

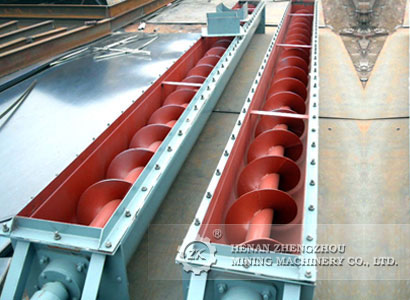

11	Screw conveyor	11	Inlet temperature of bag filter
12	ID Fan	12	Outlet temperature of bag filter
13	Bag filter on the silo	13	Inlet air pressure of ball mill
13	(three resistance filter bag)	13	Inlet air pressure of ball mill
14	High temperature butterfly valve	14	Outlet air pressure of ball mill
15	Cooling air valve	15	Outlet air pressure of separator
16	Explosion-proof valve	16	Outlet air pressure of bag filter
17	Nitrogen protection system	17	Raw coal silo damped rotation level indicator
18	Screw conveyor	18	Coal powder silo damped rotation level indicator
19	Bucket elevator	19	Cable tray
20		20	Power cable

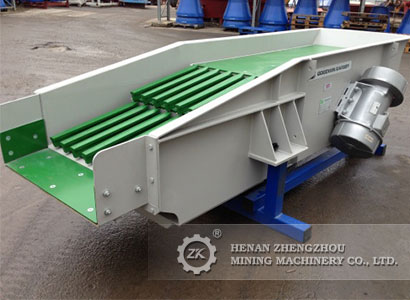

★ Raw coal storage and transportation system

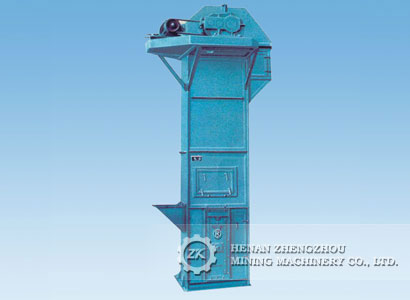

1、The raw coal with size under 35mm and moisture under 15% is conveyed to raw coal shed by auto dumper. The raw coal storaged in coal shed is loaded to coal receiving hopper by loader. The raw coal in coal receiving hopper is feed to bucket elevator evenly by speed adjustable feeding belt conveyor. The raw coal is discharged when it is lifted to required height and then come to powder making system by double layer air lock valve.
2.The rod valve is set between coal receiving hopper and vibrating feeder. It would be closed for maintenance operation of speed adjustable feeding belt conveyor. The feeding belt conveyor is speed adjustable which facilitate for generating operation and management. The iron separator is set on the top of speed adjustable belt conveyor which could get rid of scrap iron mixed in the raw coal. This maximally reduce the threat of scrap iron to the system.

★ Pulverized Coal Preparation System
1.The raw coal from storage and conveying system come into air swept coal mill for grinding. The coal powder mass and heat transfer with 200℃~350℃ hot air. The moisture enter into flue gas from coal. Coal powder is dried by hot air. Then coal powder come to powder separator with airflow for classification. The separated coarse powder come to mill for regrinding. The fine powder comes to powder collecting system with airflow through coal wind pipe.
2.To protect the equipment and system safety, the explosion venting valve and nitrogen protection connector are set on hot wind inlet pipe of air swept coal mill and outlet pipe of coal wind. Powder separator uses frequency conversion motor to adjust speed. It realizes remote control of the discharging fineness of powder separator by adjusting frequency converter.
