Technical Data

Capacity: 0.5-2.5T/H

Applied material: Dolomite, Limestone, Bauxite, Slag etc

Application: Construction materials, chemical, ceramic, mining, slag etc

OUR ADVANTAGE

1. Ultra-fine powder processing,the smallest size can reach 2500 mesh；

2. Safe and reliable operation in grinding cavity；

3. Environmental protecting,less pollution；

4. Electrical system adopts centralized control, milling workshop basic enable unmanned operation. Compared with other milling equipment, through screening rate is 99%.

1

INTRODUCTION
2

SPECIFICATIONS
3

PROCCESS

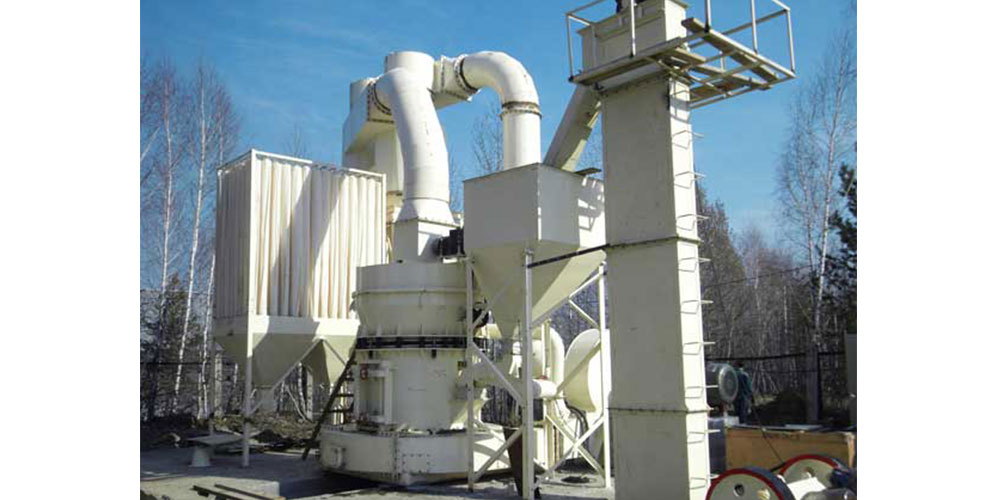

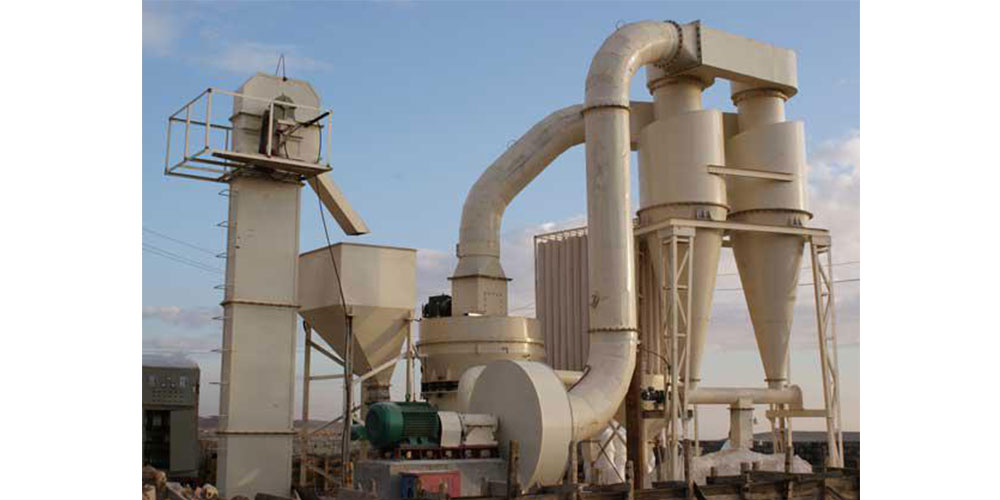

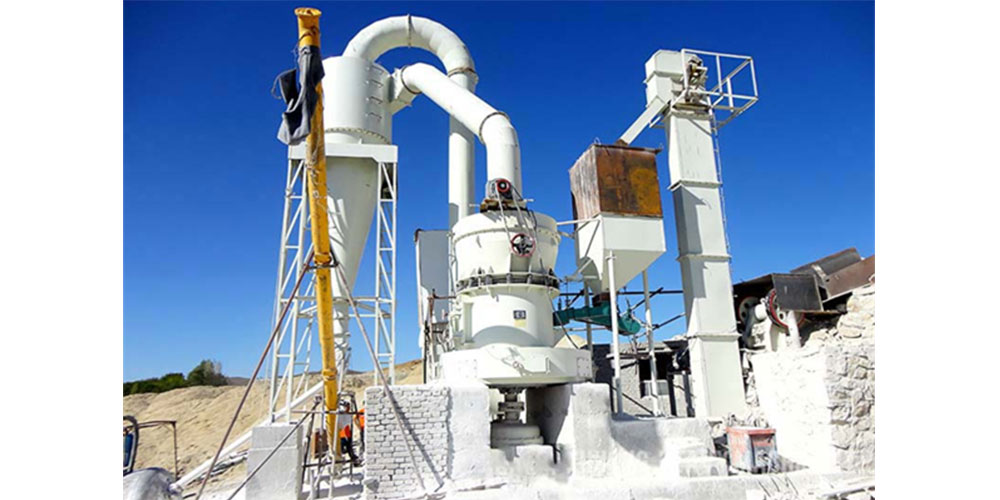

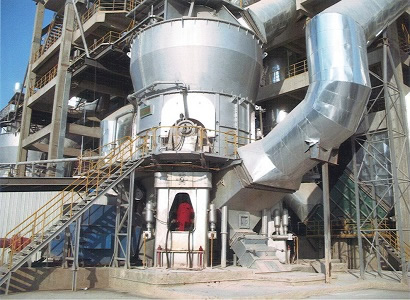

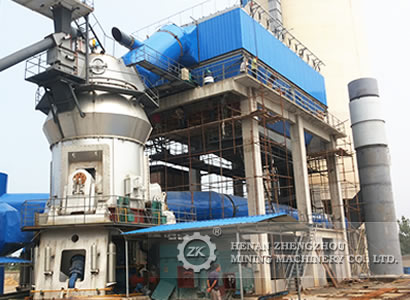

Powder Grinding Plant is the grinding process of dolomite, limestone, bauxite etc. The whole grinding system is composed with jaw crusher, bucket elevator, electromagnetic feeder, grinding unit, blower, analyzer, cyclone powder collectors, bag filters, pipes and electrical cabinet parts. According to customer demand can adopt Raymond mill, high pressure grinding mill, micro powder grinding mill etc.

Grinding mill		YGM75	YGM95	YGM130	YGM160	YGM190
Main Equipment	Capacity	0.8-1.5t/h	2.5-4t/h	4.5-7t/h	7-11t/h	11-15t/h
Grinding mill Power	Main Grinder	18.5	45	90	132	185
	Blower	15	37	90	132	185
	Classifier	2.2	5.5	7.5	15	22
Jaw Crusher	Model	PE150X250	PE200X350	PE250X400	PE250X750	PE250X750
	Power(Kw)	5.5	7.5	15	22	22
	Input size (mm)	≤130	≤150	≤210	≤210	≤210
	Output size (mm)	15-45	15-55	25-60	25-60	25-60
Elevator	Model	T210	T210	T250	T315	T400
Elevator	Power(Kw)	3	3	3	4	4
Feeder	Model	GZ-2	GZ-4	GZ-4	GZ-5	GZ-5
Feeder	Power(Kw)	0.15	0.45	0.45	0.65	0.65
Silo		According to the actual situation,we choose the suitable size for you.

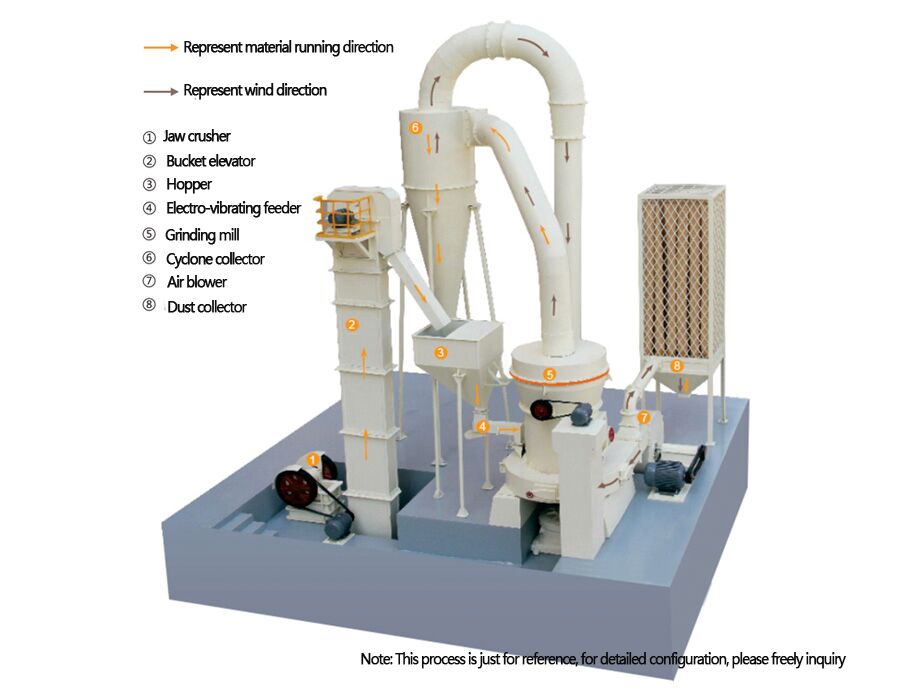

Raw material is crushed by jaw crusher then elevated into a hopper by bucket elevator, through the electromagnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. Finally powder enter into analyzer for separating under the function of blower, qualified fine powder go to cyclone collector and discharged from pipes into storage silo, unqualified powder drop back into grinding chamber for re-grind.

Whole process is under negative pressure formed closed airflow loop. Cyclone collector bottom equip air-valves, isolated outside air from inner air, increase grinding efficiency heavily. Besides, few dust and air going up to dust collector for pure, filter, more friendly for environment.
