Screen Layer: 1-4
Screen area: 2.88-18 (m2)
Capacity: 20-900 (m3/h)
Applied material: Sand, quarry, coal, minerals, building materials, etc.
1. Adopt tire coupling, flexible connection with smooth operation and low compacting to motor.
2. Adopt inclined structure with small amplitude and high frequency, which have features like high screening efficiency,
large processing ability, long life time, low energy consumption and low noise.
3. The material of screen is wear-resistance, fatigue-resistance and corrosion-resistance, also have features like high aperture ratio, light weight and high classification accuracy.
4. Adopt steel spiral spring as vibration damper, which have reliable performance and long life time.
5. Flexible for usage, processing capacity can be control by adjusting screen inclination.

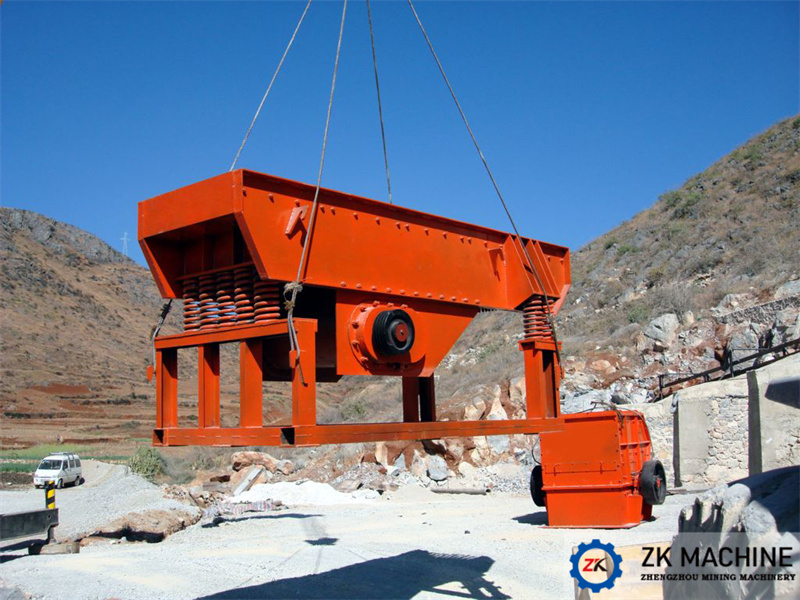

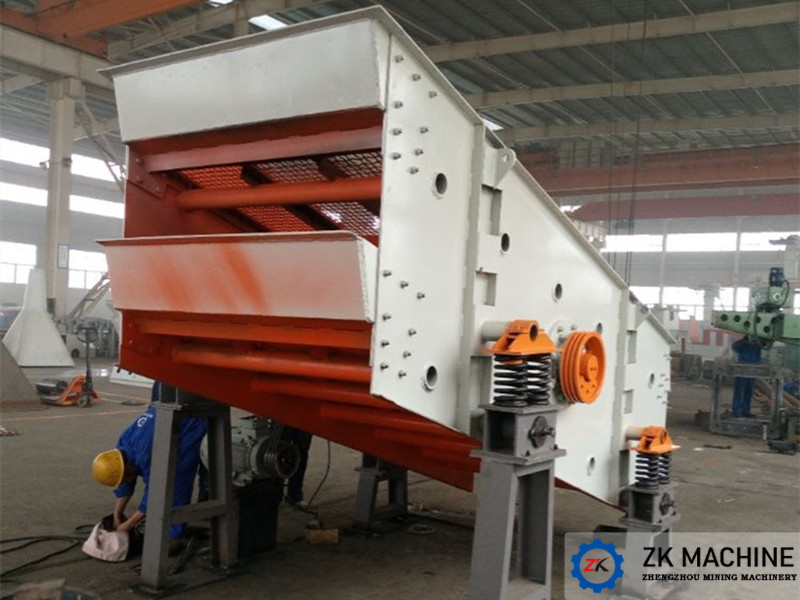

YK Series Vibrating Screen are mainly composed of driving device, screen box, vibration exciter, vibration isolation, screen etc. The main features are as below:
1. Driving Device
Motor have connect with vibration exciter by flexible coupling, which can working steady and reliable, also reduce the compacting to motor.
2. Screen Box
The screen box have composed with feeding cell, discharging cell, side plate, beam, screen surface and tensioning device, and adopt frame structure, side plate have making my whole steel plate without wielding and have high strength and long life time; the beam and side plate have connect by high strength bolt and easy to maintenance. According to different screening requirement, the slope of screen can be adjusted by height of spring support. There have different structure type like single layer, double layer, multi-layer according to different grading requirement.
3. Vibration exciter
coupling which connected by motor. The vibration exciter have composed of main eccentric block and accessory eccentric block, vibration force can be controlled by adjust the relative position of main and accessory eccentric block. The exciter have features like widely application, vibration force adjustment and easy to maintenance.
4. Vibration Isolation
There have adopt the steel spiral spring as the vibration isolation, which have features of safety and reliable operation and long life time.
5. Screen
Variable material and structure screen can be adopted according to different material, also the screen fixed type can be change according to different working condition.
Model |
Screen Layer |
Screen Size(m2) |
Vibration Frequency(v.p.m) |
Double -amplitude(mm) |
Capacity (m3/h) |
Power (kW) |
Overall Size(mm) |
Weight (kg) |
2YK1224 |
2 |
2.88 |
970 |
6~8 |
20~120 |
5.5 |
2673×2382×2027 |
1750 |
YK1235 |
1 |
4.2 |
970 |
6~8 |
20~150 |
5.5 |
3710×2464×1450 |
1729 |
2YK1235 |
2 |
4.2 |
970 |
6~8 |
20~150 |
7.5 |
3705×2393×2339 |
2476 |
3YK1235 |
3 |
4.2 |
970 |
6~8 |
20~150 |
7.5 |
3621×2521×2581 |
3158 |
4YK1235 |
4 |
4.2 |
970 |
6~8 |
20~150 |
11 |
3510×2521×2830 |
4160 |
YK1545 |
1 |
6.75 |
970 |
6~8 |
20~150 |
11 |
4904×3044×2179 |
3319 |
2YK1545 |
2 |
6.75 |
970 |
6~8 |
20~150 |
15 |
5042×3090×3165 |
5308 |
3YK1545 |
3 |
6.75 |
970 |
6~8 |
20~150 |
15 |
4972×3090×3395 |
5915 |
4YK1545 |
4 |
6.75 |
970 |
6~8 |
20~150 |
18.5 |
4915×3155×3804 |
7260 |
YK1548 |
1 |
7.2 |
970 |
6~8 |
20~150 |
11 |
5190×3044×2186 |
3319 |
2YK1548 |
2 |
7.2 |
970 |
6~8 |
20~150 |
15 |
5265×3140×3208 |
5284 |
3YK1548 |
3 |
7.2 |
970 |
6~8 |
20~150 |
15 |
5200×3090×3440 |
6186 |
4YK1548 |
4 |
7.2 |
970 |
6~8 |
20~150 |
18.5 |
5200×3155×3849 |
7284 |
YK1860 |
1 |
10.8 |
970 |
6~8 |
32~350 |
15 |
6302×3365×2992 |
4651 |
2YK1860 |
2 |
10.8 |
970 |
6~8 |
32~350 |
18.5 |
6020×3455×3756 |
6195 |
3YK1860 |
3 |
10.8 |
970 |
6~8 |
32~350 |
18.5 |
6020×3455×4180 |
7613 |
4YK1860 |
4 |
10.8 |
970 |
6~8 |
32~350 |
22 |
5963×3505×4463 |
8650 |
YK2160 |
1 |
12.6 |
970 |
6~8 |
66~720 |
18.5 |
6302×3730×2992 |
4917 |
2YK2160 |
2 |
12.6 |
970 |
6~8 |
66~720 |
22 |
5966×3958×3975 |
6856 |
3YK2160 |
3 |
12.6 |
970 |
6~8 |
66~720 |
30 |
5966×3958×4400 |
9112 |
4YK2160 |
4 |
12.6 |
970 |
6~8 |
66~720 |
30 |
5966×3958×4780 |
11405 |
YK2460 |
1 |
14.4 |
970 |
6~8 |
75~750 |
18.5 |
6302×4155×2992 |
5243 |
2YK2460 |
2 |
14.4 |
970 |
6~8 |
75~750 |
30 |
6027×4308×3975 |
8503 |
3YK2460 |
3 |
14.4 |
970 |
6~8 |
75~750 |
30 |
6027×4308×4400 |
10400 |
4YK2460 |
4 |
14.4 |
970 |
6~8 |
75~750 |
30 |
5966×4308×4780 |
12068 |
2YK2475 |
2 |
18 |
970 |
6~8 |
120~900 |
30 |
7812×4308×4642 |
10709 |
3YK2475 |
3 |
18 |
970 |
6~8 |
120~900 |
37 |
7718×4393×5033 |
13400 |
4YK2475 |
4 |
18 |
970 |
6~8 |
120~900 |
45 |
7718×4494×5361 |
15500 |
YK3060 |
1 |
18 |
970 |
6~8 |
200~900 |
30 |
6302×4943×3108 |
14052 |
2YK3060 |
2 |
18 |
970 |
6~8 |
200~900 |
37 |
6207×4943×3985 |
17185 |
3YK3060 |
3 |
18 |
970 |
6~8 |
200~900 |
45 |
6207×4943×4485 |
19200 |
4YK3060 |
4 |
18 |
970 |
6~8 |
200~900 |
45 |
6207×4943×4785 |
21080 |
YK series Vibrating Screen are mainly composed of driving device, screen box, vibration exciter, vibration isolation, screen etc. The main features are as below:
1. Driving Device
Motor have connect with vibration exciter by flexible coupling, which can working steady and reliable, also reduce the compacting to motor.
2. Screen Box
The screen box have composed with feeding cell, discharging cell, side plate, beam, screen surface and tensioning device, and adopt frame structure, side plate have making my whole steel plate without wielding and have high strength and long life time; the beam and side plate have connect by high strength bolt and easy to maintenance. According to different screening requirement, the slope of screen can be adjusted by height of spring support. There have different structure type like single layer, double layer, multi-layer according to different grading requirement.
3. Vibration exciter
coupling which connected by motor. The vibration exciter have composed of main eccentric block and accessory eccentric block, vibration force can be controlled by adjust the relative position of main and accessory eccentric block. The exciter have features like widely application, vibration force adjustment and easy to maintenance.
4. Vibration Isolation
There have adopt the steel spiral spring as the vibration isolation, which have features of safety and reliable operation and long life time.
5. Screen
Variable material and structure screen can be adopted according to different material, also the screen fixed type can be change according to different working condition.
