SLAG BALL MILL







Technical Data

Diameter:φ2.2 - φ4.6 (m)



Productivity: 18-210 (t/h)



Power: 310-3550 (kW)



Application : Used for grinding blast furnace granulated slag powder to prepare slag powder

ADVANTAGE



1. High grinding efficiency and low power consumption.



2. Stable performance and easy installation and maintenance.



3. Simple technical process and advanced technology.



4. High production capacity and greatly reducing the comprehensive electricity consumption of powder grinding.



INTRODUCTION

Slag grinding mill is the equipment to grind Ground Granulated Blast furnace Slag (GGBS) into small particles. We supply both ball mill and vertical mill for GGBS grinding.

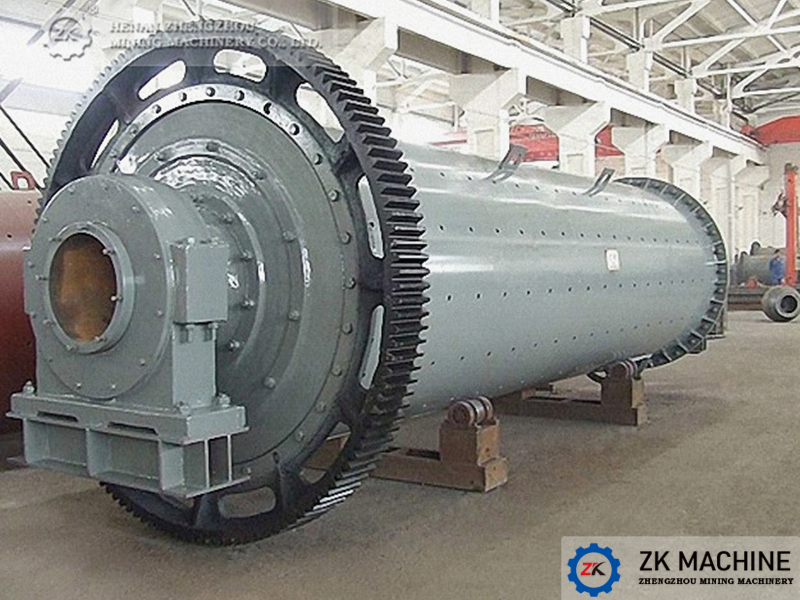

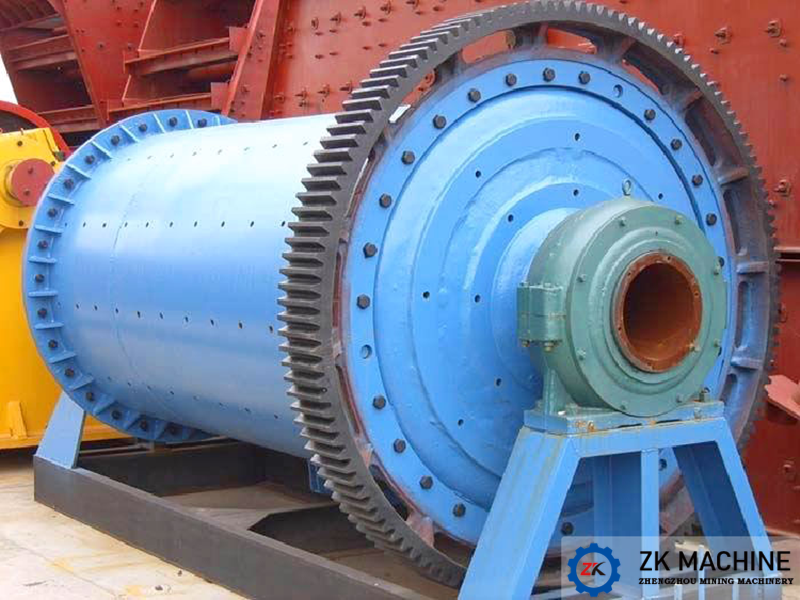

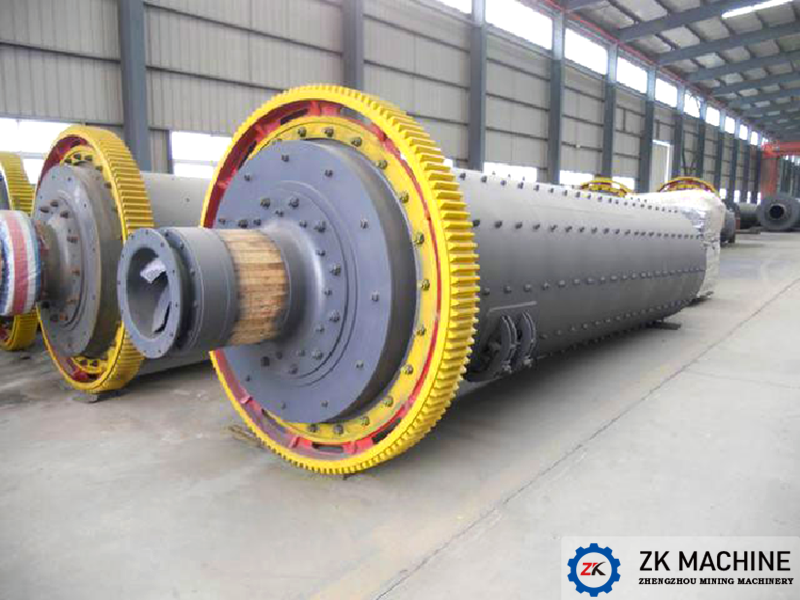

Slag Ball Mill:



Slag ball mill is the key equipment used for re-grinding the slag after it is pre-crushed. It is mainly applied in the superfine slag powder production industry and cement powder grinding station. chemical and other industries. Grinding ways can be divided into dry and wet these two types. According to different ore discharge ways, it can be divided into grid type and the overflow type.

SPECIFICATIONS

Number

Specification  (m)

Productivity  (t/h)

Rotating  speed of  cylinder
     (r/min)

Rotating  mode

Power  (kw)

Reducer

Weight  (t)

Model

Speed  ratio

1

φ2.2×6.5

18

21.4

Edge

310

ZD70

5

44

2

φ2.4×8

26-28

20.14

Edge

570

ZD80

6.3

90

3

φ2.6×13

11-15

19.7

Edge

1000

JDX800

6.3

137

4

φ2.8×6.5

35

18.65

Edge

630

ZD80

6.3

100

5

φ2.8×10

45-48

18.65

Center

800

MFY80

37.5

160

6

φ3×6.5

37

18.58

Edge

800

JD800

5.6

115

7

φ3×9

40-50

18.58

Edge

1000

JD800B

5.6

132

8

φ3×12

65-75

18

Center

1400

JS110-B-F1

42.22

202

9

φ3.2×13

72-75

17.86

Edge

1400

JDX900

6.3

237

10

φ3.4×7.5

70

16.9

Edge

1000

ZDA-100

6.3

167

11

φ3.5×10

90

16.8

Center

1250

Js110-A

44.1

154

12

φ4.6×7.5+3.5

180

15

Center

2500

---

--

272

13

φ4.6×10.5+3.5

210

---

Center

3550

JQS3550

15.1

360





PROCESS

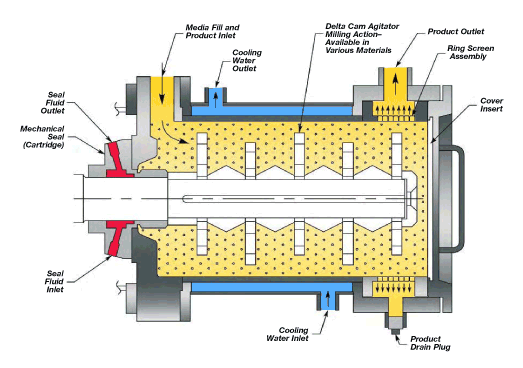

Slag mill adopts high and fine screening and powder grinding technology and there are double-layer partition device, mobile lining board and tailing discharging device with unique structure inside. The inside of the cylinder adopts new type classification lining board and uses micro grinding media for high linearity powder grinding and crushing, thus achieving high production capacity and greatly reducing the comprehensive electricity consumption of powder grinding, and in addition, this equipment has stable performance and easy installation and maintenance.




If you are interested in our product design, specification, spare parts, quotation etc, please feel free to contact us by WhatsApp +8615290898115, or email us at zkeqpt@zkcorp.com.
