Technical Data

Model: MQG

Feeding Size: ≦25 (mm)

Output size: 0.074-0.8 (mm)

Output: 0.8-25 (t/h)

OUR ADVANTAGE

1. Energy saving and Long working life: Traditional sliding bearings are replaced by double row roller bearings in small and medium size ball mill to reduce energy consuming,new endurable wearing parts to increase service life of vulnerable parts.

2. Big crushing ratio and High ore particle fineness: The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt.

3. Simple structure and Convenient maintenance: Ball Mill changes the complicated grinding mill structure. we design the body and chassis integration which makes it easy to place the machine on the ground. Three meters of the ball machine above is especially configured with jack-up devices for easy maintenance.

4. Good corrosion resistance and Runs steadily and efficiently: The rotary rack wheel uses casting gear hobbing and inside the cylinder there is wear-resisting lining board which has fine abrasion performance. This ball mill has stable operation and reliable performance.

5. Easy installation Adjustment, and operation and High technology: Low speed driving unit with Lifting device; Large ball mills adopt pitot pressure or hydrostatic bearings.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

INTRODUCTION
Continuous ball mill refers to the continuous production of material processing process.Both feed in and feed out materials process are carried out in a row, which could adopt open or closed circuit production. By open circuit production process,it has a large production capacity, and there is no need to control the product size strictly. But the closed-circuit grinding to regrind the material that is non-stardard finished product size by the regrinding device. Continuous ball mill is widely used in different industries.

In the continuous type ball mill, the material is being fed from the one end through its hollow shaft, while the crushed material comes out from the hollow shaft, at the other end. Usually continuous Mills are used when the production rate is required to be high.

Applications:

Specially designed for：Cement, Iron Ore, Copper Ore, Alumina, Cement, Calcium Carbonate, Bauxite, Calcium Carbide, Calcium Oxide, Wet Grinding, Ceramic, Refractory, Slurry, Coconut shell, Carbon industries etc.

SPECIFICATIONS

model	cylinder rev(r/min)	grind media weight (t)	feeding size(mm)	output size(mm)	output (t/h)	motor
model	cylinder rev(r/min)	grind media weight (t)	feeding size(mm)	output size(mm)	output (t/h)	type	power
MQG900X1800	38	1.8	≦25	0.074-.06	0.8-1	Y255M-8	22
MQG900X3000	37.4	2.7	≦25	0.074-0.3	0.8	Y225M-6	30
MQG1200x2400	32	4.8	≦25	0.074-.06	1.5-2	Y280M-8	45
MQG1200X4500	30	5.2	≦25	0.074-.06	1.5	Y280M-6	55
MQG1500x4500	28.8	10	≦25	0.074-0.4	3-4	JR126-8	110
MQG1500x5700	28.8	12	≦25	0.074-0.4	3-5	JR127-8	130
MQG1500x6400	28.8	13	≦25	0.074-0.4	3-5	JR127-8	130
MQG1830x5400	24.5	15	≦25	0.074-0.4	5-7	JR137-8	210
MQG18306400	24.5	19	≦25	0.074-0.4	5-7	JR137-8	210
MQG1830x7000	24.5	20	≦25	0.074-0.4	6-8	JR138-8	245
MQG2200x7000	21.6	30	≦25	0.074-0.8	8-10	JR158-8	380
MQG2200x9000	21.4	34	≦25	0.074-0.8	8-10	JR1510-8	475
MQG2400x7000	20.4	36	≦25	0.074-0.8	10-14	JR1510-8	475
MQG2400x8000	20.4	42	≦25	0.074-0.8	10-14	YR630-8	560
MQG2600x8000	19.6	52	≦25	0.074-0.8	16-20	JR1512-8	630
MQG3000x9000	18.3	78	≦25	0.074-0.8	20-25	YR1000-8/1180	1000

PROCESS

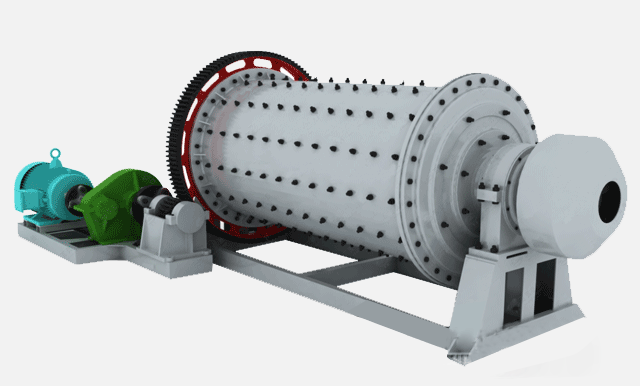

Ball mill main parts : Feeding part ,discharging part, Rotary part, Driving part (reducer, small driving gear, electric motor and electric control) and Other major parts.
