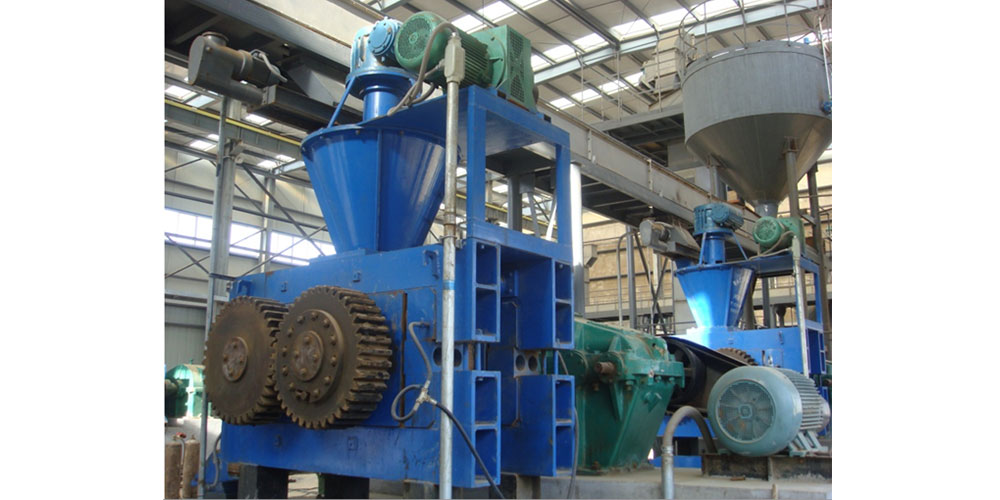

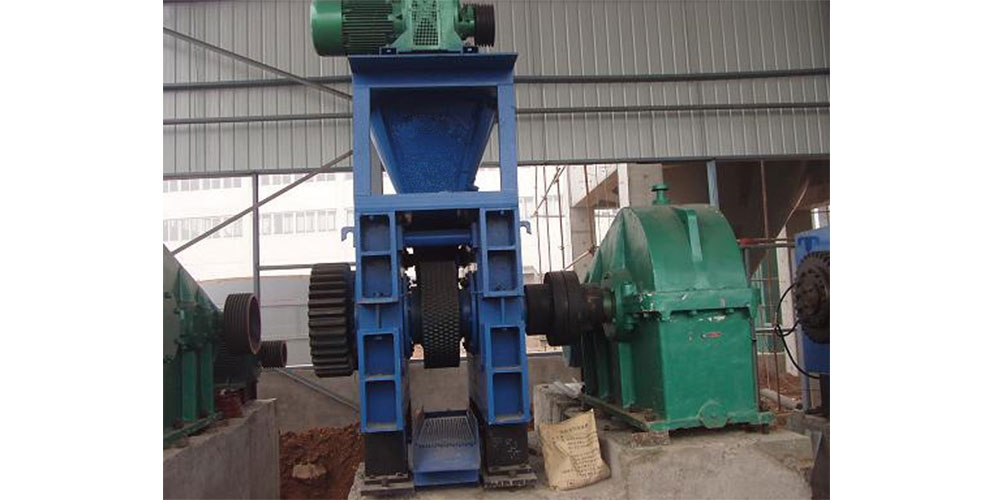

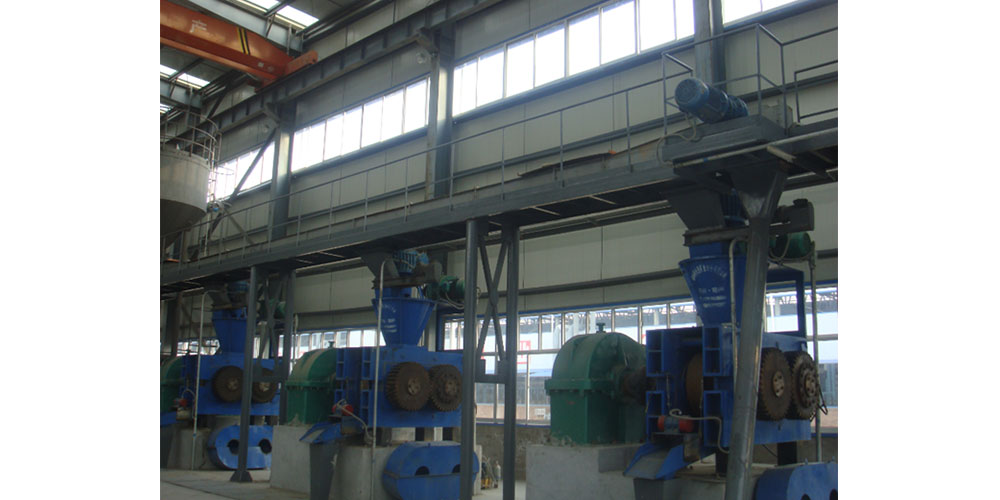

BRIQUETTER

Chat Online +86 13526832749

Leave Message

zkeqpt@zkcorp.com

Technical Data

Model: LYQ0.5-LYQ10

Roller diameter (mm): Φ299-Φ858

Capacity(kg/h): 500-10000

Application: Magnesium production line

OUR ADVANTAGE

1. The Briquetter can be used for pressing iron, iron oxide, iron, coal, coke, aluminum powder, gypsum, tailings, toner, charcoal powder, slag, sludge, kaolin, activated carbon, coke powder and other powder,waste residue.

2. It is widely used in power plants, metallurgy, refractory, chemical, energy, transportation, heating and other industries.

3. The Briquette machine production is after the molding material, which is energy saving and environmental protection, convenient transportation, improving the utilization rate of waste. It has good economic benefit and social benefit.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

This briquetter is mainly designed to press the mixed material of calcined, dolomite, ferrosilicon and fluorite into briquettes for the Mg0 reduction in Pigeon Process. It can also be used for the brigquetting powders of aluminum, AI203, limestone and clay to control dust emission or to make it more convenient for transportation.

model	Roller dia.	NO. of pit	Roller width	Capa (kg/h)	Main motor power (KW)	Pre-press motor power (KW)
LYQ0.5	Ф299	108	180	500	18.5	7.5
LYQ1.0	Ф367	200	183	1000	37	11
LYQ1.5	Ф367	200	183	1500	45	15
LYQ2.0	Ф399.5	240	252	2000	45	15
LYQ3.0	Ф522	300	196	3000	55	15
LYQ5.0	Ф738 Ф700	504 560	210 225	5000	75	18.5
LYQ6.0	Ф738	504	220	6000	90	18.5
LYQ8.0	Ф758	616	225	8000	110	18.5
LYQ10	Ф858	1000	300	10000	132	18.5
