Model: ZL340/ZL920
Filter Area: 1360-16670（㎡）
Emmission Concentration: ≤30 （mg/Nm³）
Air Leakage Rate: ＜3%
1. Advanced thin type lifting valve and off-line dust cleaning device make sure the dust collected completely.
2. Reasonable design for air inlet evenly flow tube and dust hopper discharging device. This can resolve the problem the uneven air flow of each chamber.
3. Bigger volume air bag can be suitable for both high pressure and low pressure air supply.
4. Spring increase type is adopted on the top of filtering bag. It has the advanages like good sealing performance, easy and fast bag replacing, bag replacing outside the bag filter.
5. Design of filtering bag is different according to different industry and application. The fabrication standards are increased at approx. 50% based on the industry standard.
6. Solenoid pulse vale adpots high quality raw materia. Its mebrane has longer using life.
7. Control system adpots advanded controller. It has 3 controlling methods: pressure difference, timing and manual. Offline valve, pulse valve and ash discharging valve are auotmatically controlled by the system.

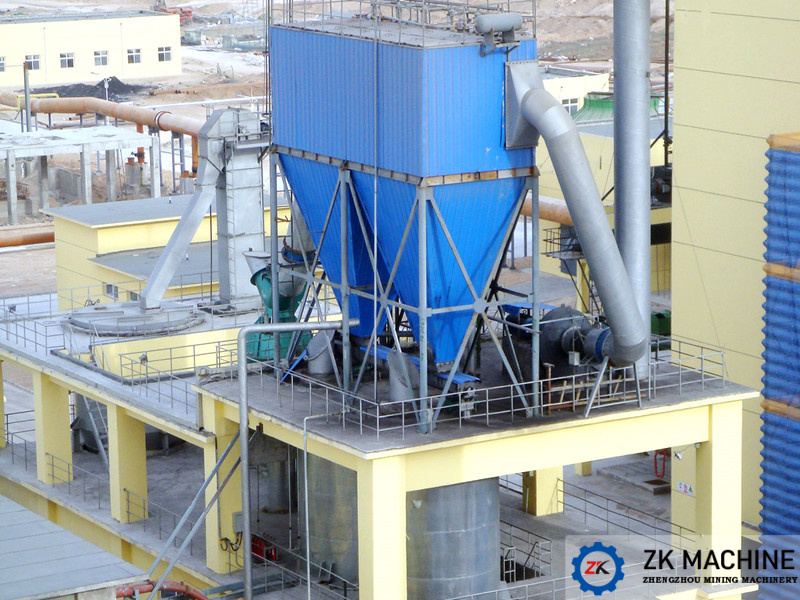

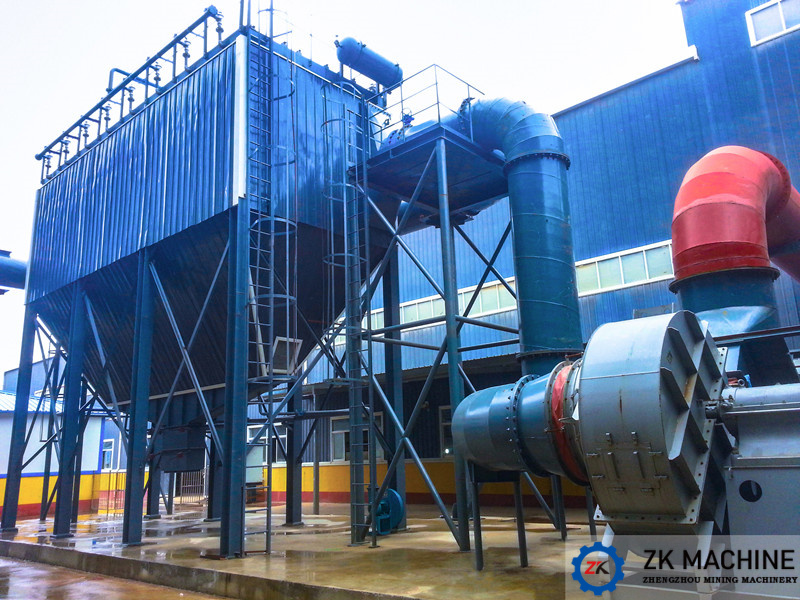

Pulse Jet Dust Collector is a new type and high efficient bag filter that develops from the common short bag fpulse bag filter. It has the features like bigger air volume, stronger dust cleaning ability, high efficiency, easy operation and maintenance and etc. It is suitable for dusty air cleaning and maerial dust collecting in the industries like metallurgy, construction, chemical and etc.
Suitable for application in: cement, metallurgy, electric power, chemical and other industries of dust gas purification and fine powder material recycling collection.
|
Model |
Row Qty |
Cell Qty |
Filter Area （㎡） |
Air Volume |
Bag
Qty |
Pressure Drop （Pa） |
Emmission
Concentration |
Air Leakage Rate |
Pressure Of. Compressed Air Source （Mpa） |
Weight （t） |
|
ZL340-4 |
1 |
4 |
1360 |
8.16-16.32 |
560 |
1200-1400Pa |
≤30 |
＜3% |
0.5-0.6MPa |
43.5 |
|
ZL340-5 |
1 |
5 |
1700 |
10.20-20.40 |
700 |
54.4 |
||||
|
ZL340-6 |
1 |
6 |
2040 |
12.24-24.48 |
840 |
65.3 |
||||
|
ZL340-7 |
1 |
7 |
2380 |
14.28-28.56 |
980 |
78.54 |
||||
|
ZL340-8 |
1 |
8 |
2720 |
16.32-32.64 |
1120 |
89.7 |
||||
|
ZL340-9 |
1 |
9 |
3060 |
18.36-36.72 |
1260 |
101 |
||||
|
ZL340-10 |
1 |
10 |
3400 |
20.40-40.80 |
1400 |
112 |
||||
|
ZL340-2×4 |
2 |
8 |
2720 |
16.32-32.64 |
1120 |
87 |
||||
|
ZL340-2×5 |
2 |
10 |
3400 |
20.40-40.80 |
1400 |
108 |
||||
|
ZL340-2×6 |
2 |
12 |
4080 |
24.48-48.96 |
1680 |
131 |
||||
|
ZL340-2×7 |
2 |
14 |
4760 |
28.56-57.12 |
1960 |
152.3 |
||||
|
ZL340-2×8 |
2 |
16 |
5440 |
32.64-65.28 |
2240 |
179.5 |
||||
|
ZL340-2×9 |
2 |
18 |
6120 |
36.72-73.44 |
2520 |
196 |
||||
|
ZL340-2×10 |
2 |
20 |
6800 |
40.80-81.60 |
2800 |
271.6 |

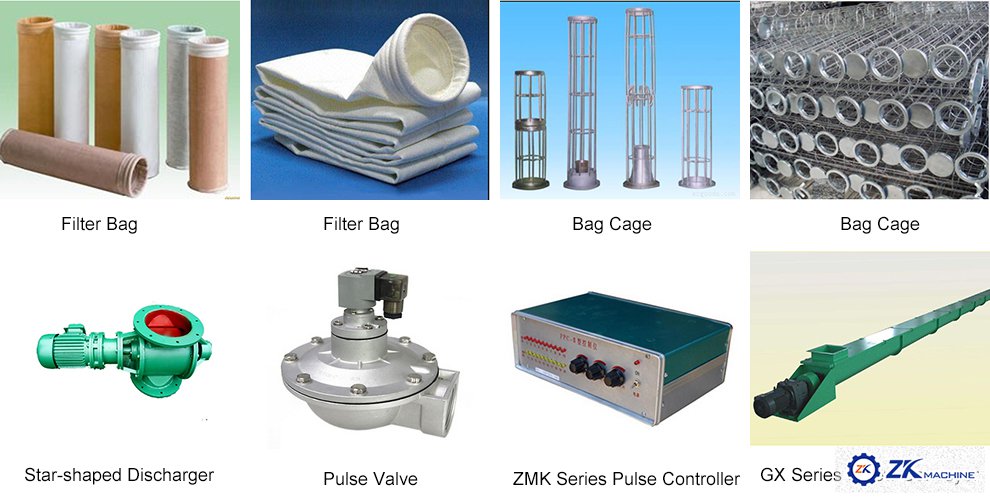

Pulse dust collector is mainly composed of upper box, middle box, ash bucket, supporting legs, filtering bag and blowing device, ash discharging device. The features of this structure are:
1.Upper box is devided into thousands chambers. In order to realize off-line cleanign dust and maintenance, each chamber has equipment 1 lifting valve.
2.Pneumatic vent valve is controlled by air cylinder. The advantages are realiable operation, fast speed of on/off, without any leakage of air.
3.Compared with horizontal installation, the vertical installation fo pneumatic vent valve is easier during maintenance.
4.Filtering bag is self-locked and sealed on the board holes by the flexible ring on the bag. This can gurantee low emission density and easy for installation and replacement.
5.Optimized injection short tube can gurantee perfect dusting cleaning performance.
6.Safety guard and walking platform are equipped for regular maintenance.
